JIS F 7305 MARINE CAST IRON GLOBE VALVE 2" to 14" IMPA from

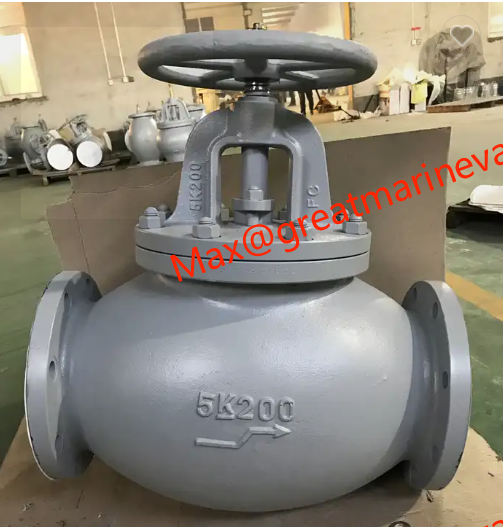

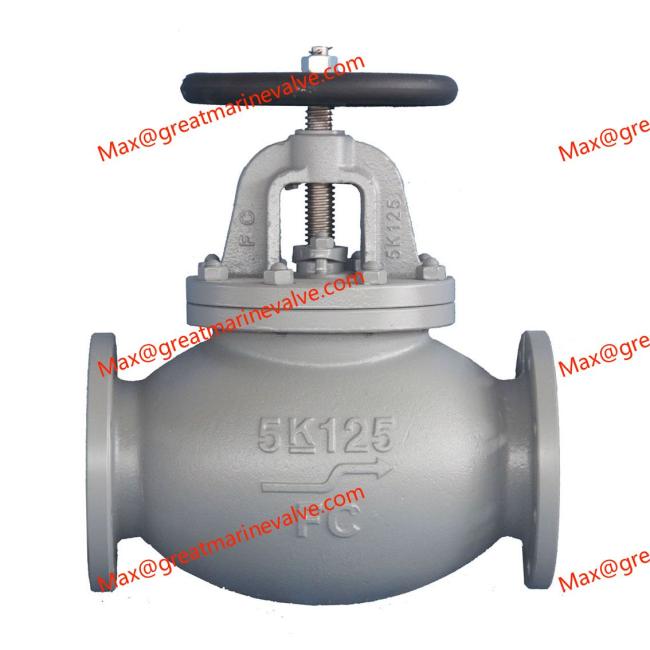

Marine Cast Iron Globe Valve JIS F7305 5K
Marine Cast Iron Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree
Design Standard: JIS F7305-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa
Flange size as per JIS B2220 - 5K
Main Material:
Body: Cast Iron (FC200)
Bonnet: Cast Iron (FC200)
Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Gasket: non-asbestos
Main Size List(mm):
| IMPA Code | Size | L | D | C | No of Bolt Hole | h | t | H | D2 |
| 750201 | 50 | 210 | 130 | 105 | 4 | 15 | 16 | 270 | 160 |
| 750202 | 65 | 250 | 155 | 130 | 4 | 15 | 18 | 300 | 180 |
| 750203 | 80 | 280 | 180 | 145 | 4 | 19 | 18 | 310 | 180 |
| 750204 | 100 | 340 | 200 | 165 | 8 | 19 | 20 | 360 | 224 |
| 750205 | 125 | 410 | 235 | 200 | 8 | 19 | 20 | 390 | 250 |
| 750206 | 150 | 480 | 265 | 230 | 8 | 19 | 22 | 445 | 280 |
| 750207 | 200 | 570 | 320 | 280 | 8 | 23 | 24 | 530 | 315 |
| 750208 | 250 | 740 | 385 | 345 | 12 | 23 | 26 | 650 | 355 |
| 750209 | 300 | 840 | 430 | 390 | 12 | 23 | 28 | 740 | 400 |
| 750210 | 350 | 840 | 480 | 435 | 12 | 25 | 30 | 840 | 500 |
| 750211 | 400 | 1050 | 540 | 495 | 16 | 25 | 30 | 940 |
630 |
