JIS F7306 MARINE CAST IRON ANGLE VALVE 2" to 14" IMPA 750216 750217 750218 750219 750220 750221 750222 750223

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: sock
Brand: OEM
Product Description

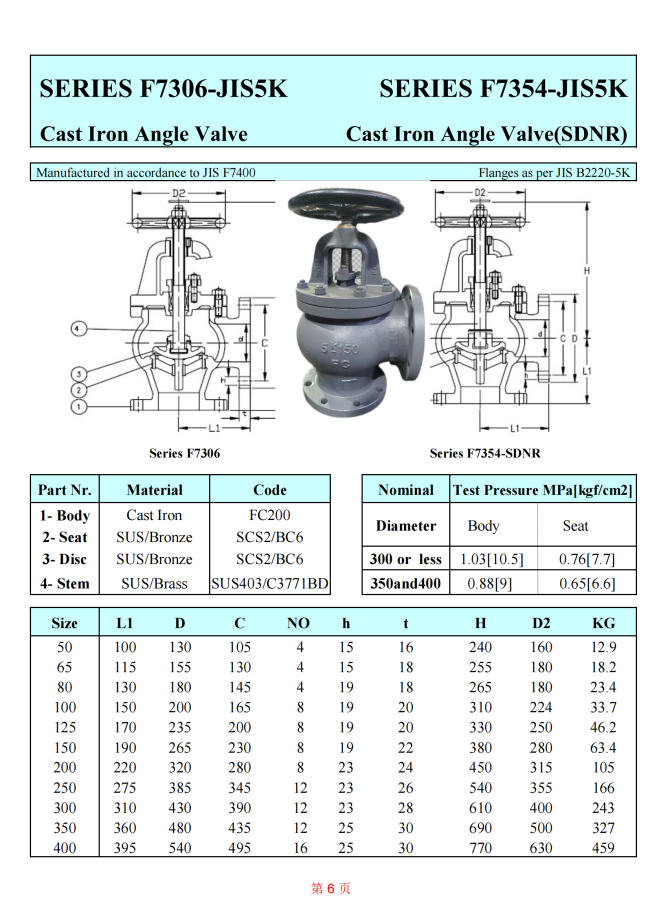

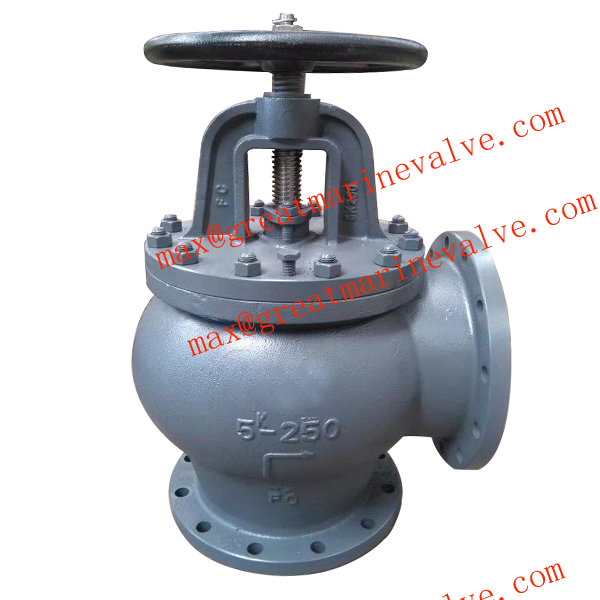

Marine Cast Iron Angle Valve JIS F7306 5K



Marine Cast Iron Angle Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7306-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 - 5K



IMPA750216 F7306 5K50
IMPA750217 F7306 5K65
IMPA750218 F7306 5K80
IMPA750219 F7306 5K100
IMPA750220 F7306 5K125
IMPA750221 F7306 5K150
IMPA750222 F7306 5K200
IMPA750223 F7306 5K250
IMPA750224 F7306 5K300
IMPA750225 F7306 5K350
IMPA750226 F7306 5K400
