Marine standard cast iron 10K through cut-off valve JIS F7307 nominal diameter 10K50A-10K500A, and can provide ABS CCS BV GL DNK and other classification society certificate

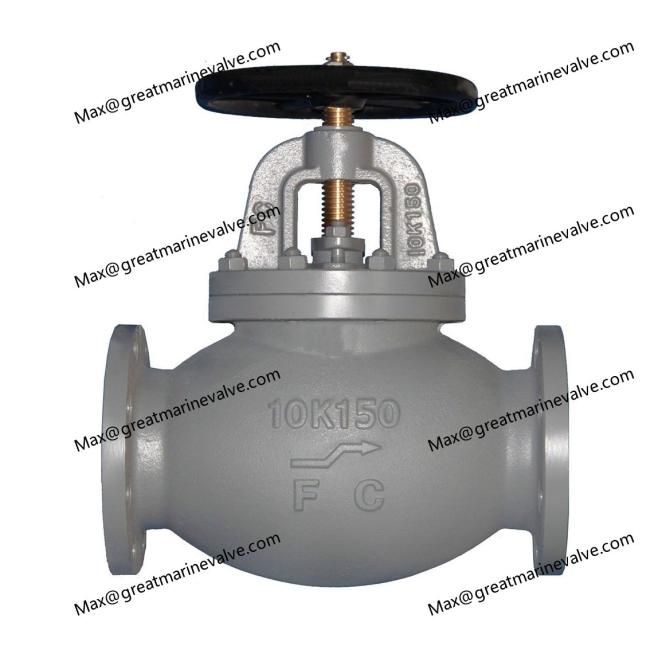

Marine Cast Iron Globe Valve JIS F7307 10K

It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

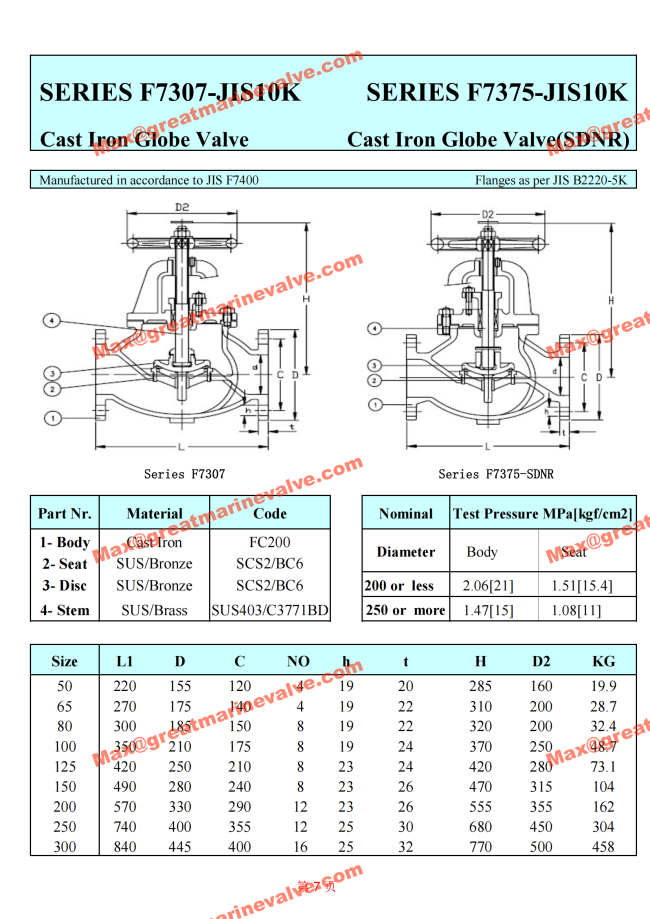

Design Standard: JIS F7307-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -10K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

Handwheel: Cast Iron (FC200)

IMPA 750231 F7307 10K50

IMPA 750232 F7307 10K65

IMPA 750233 F7307 10K80

IMPA 750234 F7307 10K100

IMPA 750235 F7307 10K125

IMPA 750236 F7307 10K150

IMPA 750237 F7307 10K200

IMPA 750238 F7307 10K250

IMPA 750239 F7307 10K300
