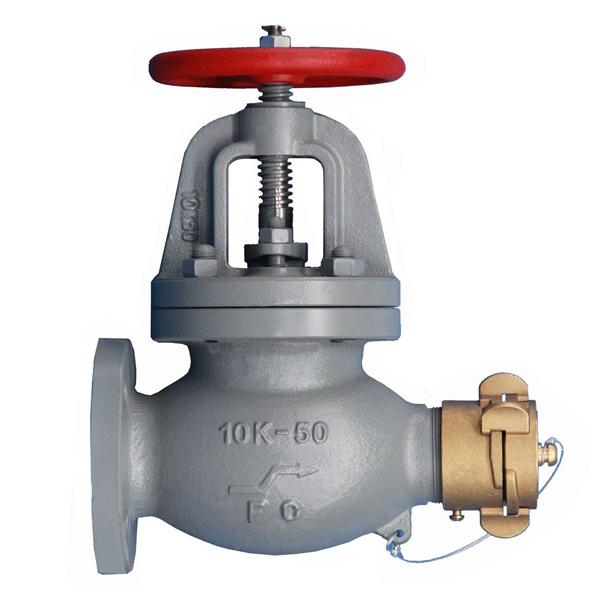

Marine Cast Iron Globe Hose Valve JIS F7333A 5K/10K WITH COUPLINGS
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
China Marine Cast Iron Globe Hose Valve JIS F7333 5K/10K:
WITH CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
Design Standard: JIS F7333
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: 5K: Body- 1.05Mpa, Seat-0.77Mpa, 10K: body-2.1Mpa, Seat-1.54Mpa
Flange size as per JIS B2220 -5K or 10K
Main Material:
Body & Bonnet: Cast Iron (FC200)
Seat & Disc: Bronze (BC6) or Stainless Steel (SCS2)
Stem: Brass (C3771BD) or Stainless Steel (SUS403)
Packing Gland: Bronze (BC6) or Stainless Steel (SCS2)
Coupling: Bronze or Brass
Handwheel: Cast Iron (FC200)

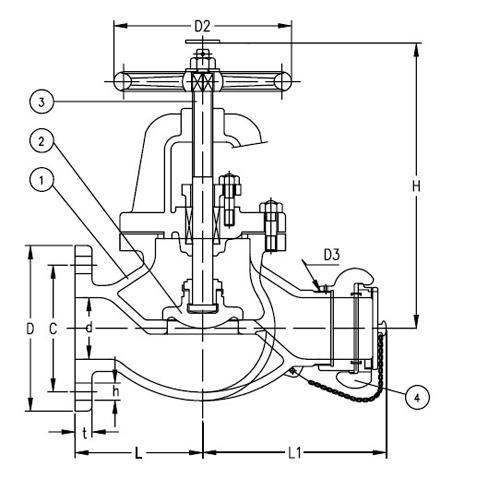

Main Size List(mm):
| IMPA CODE | DN | k | d | L1 | D | C | n-d | t | H | D2 | D3 | L | L2 | Weight(kg) |
| 751731 | 50 | 5 | 50 | 165 | 130 | 105 | 4-15 | 16 | 270 | 160 | M64X2 | 105 | 110 | 14.7 |
| 751732 | 10 | 50 | 170 | 155 | 120 | 4-19 | 20 | 285 | 160 | M64X2 | 110 | 115 | 18.9 | |
| 751733 | 65 | 10 | 65 | 200 | 175 | 140 | 4-19 | 22 | 310 | 200 | M80X2 | 135 | 125 | 28.2 |
The description/sizes may be different with goods, please check with us when order.

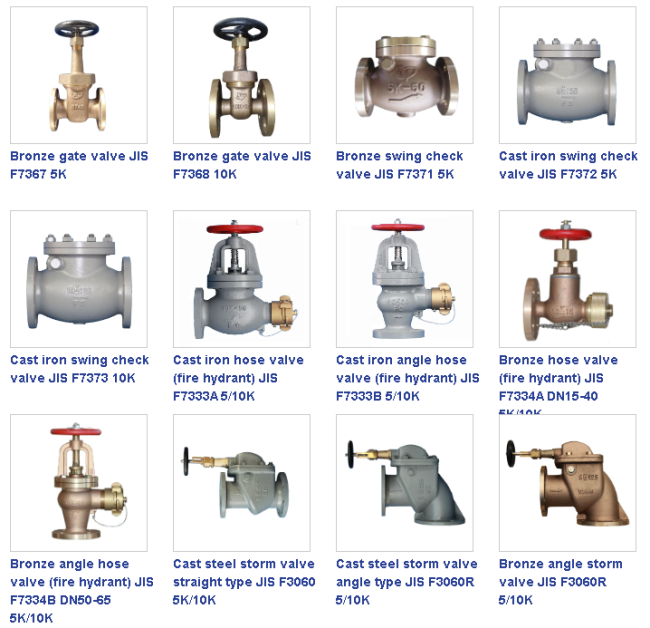

Similar Products
