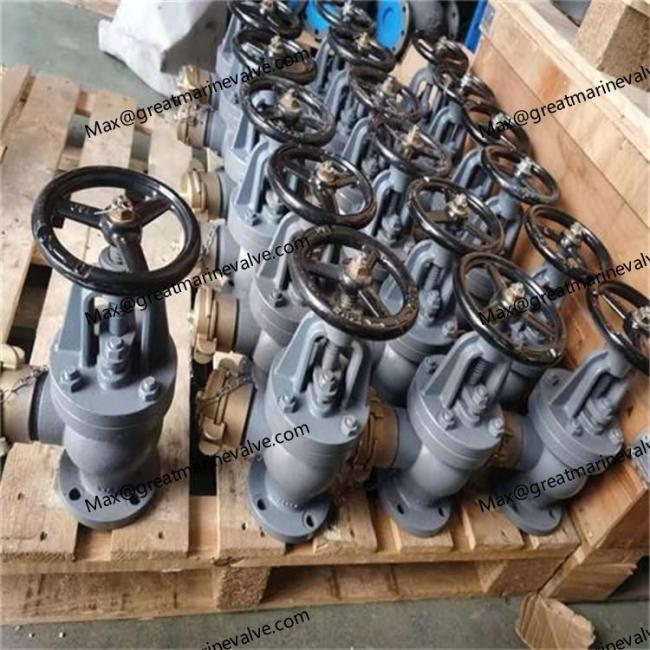

Marine Cast Iron Angle Hose Valve JS F7333B 5K/10K with Brass Couplings
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Marine Cast Iron Angle Hose Valve JS F7333 5K/10K:
IMPA751734
IMPA751735
IMPA751736
IMPA
IMPA
Design Standard: JIS F7333
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: 5K: Body- 1.05Mpa, Seat-0.77Mpa, 10K: body-2.1Mpa, Seat-1.54Mpa
Flange size as per JIS B2220 -5K or 10K
Main Material:
Body & Bonnet: Cast Iron (FC200)
Seat & Disc: Bronze (BC6) or Stainless Steel (SCS2)
Stem: Brass (C3771BD) or Stainless Steel (SUS403)
Packing Gland: Bronze (BC6) or Stainless Steel (SCS2)
Coupling: Bronze or Brass
Handwheel: Cast Iron (FC200)

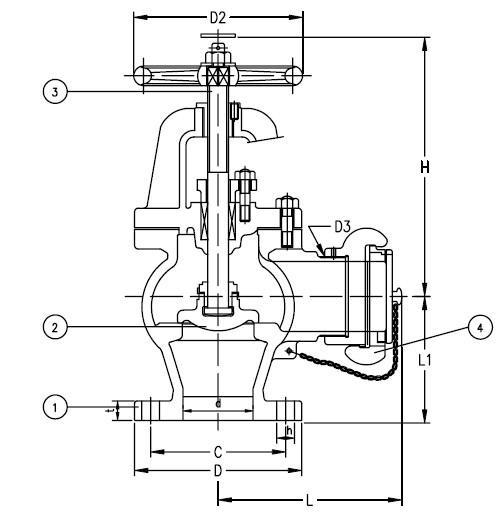

Main Size List(mm):
| IMPA CODE | DN | k | d | L | D | C | n-d | t | H | D2 | D3 | L1 | L2 | Weight(kg) |
| 751734 | 50 | 5 | 50 | 155 | 130 | 105 | 4-15 | 16 | 255 | 160 | M64X2 | 100 | 110 | 12.8 |
| 751736 | 10 | 50 | 170 | 155 | 120 | 4-19 | 20 | 255 | 160 | M64X2 | 120 | 115 | 17 | |
| 751737 | 65 | 10 | 65 | 185 | 175 | 140 | 4-19 | 22 | 270 | 200 | M80X2 | 130 | 125 | 24.3 |
The description/sizes may be different with goods, please check with us when order.
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
