China Marine Bronze Globe Valve JIS F7303 16K IMPA750141 IMPA750142 IMPA750143 IMPA750144 IMPA750145 for sale

Marine Bronze Globe Valve JIS F7303 16K IMPA750141 IMPA750142 IMPA750143 IMPA750144 IMPA750145

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Product Description

Marine Bronze Globe Valve JIS F7303 16K IMPA750141 IMPA750142 IMPA750143 IMPA750144 IMPA750145

Qingdao china Marine Bronze Globe Valve JIS F7303 16K:

Design Standard: JIS F7303-1996

Test Standard: JIS F7400-1996

Test Pressure: Body-3.3Mpa, Seat-2.42Mpa

Flange Size as per JIS B2220-16K

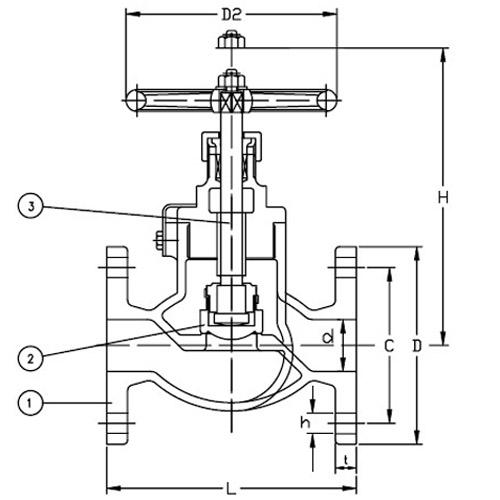

Main Material:





1-Body: Bronze (BC6)

2-Disc:Bronze (BC6)

3-Stem: Brass (C3771BD)

4-Bonnet:Bronze (BC6)

5-Handwheel: Cast Iron (FC200)

Main Size List(mm):



IMPA Code Size L D C No of Bolt Hole h t H D2
750141 15 110 95 70 4 15 12 130 80
750142 20 120 100 75 4 15 14 140 100
750143 25 130 125 90 4 19 14 160 125
750144 32 160 135 100 4 19 16 170 125
750145 40 180 140 105 4 19 16 190 140

The description/sizes may be different with goods, please check with us when order.
