China Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155 for sale

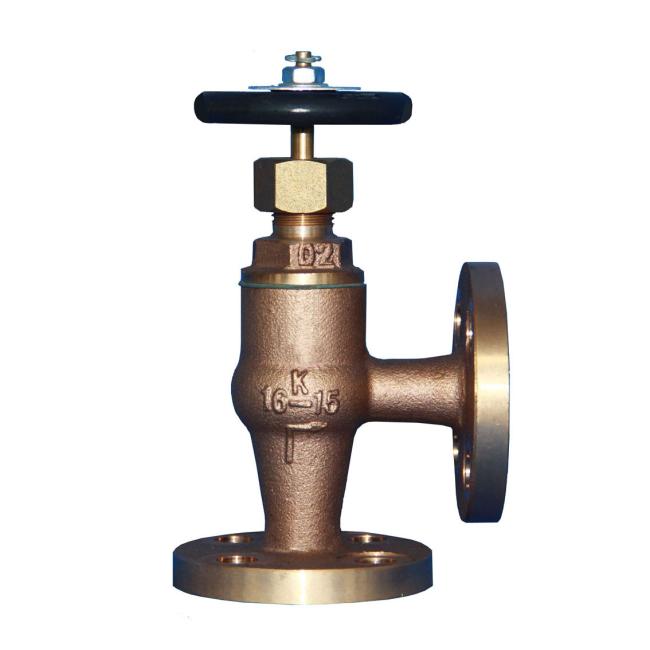

Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Product Description

QINGDAO China Marine Bronze Angle Valve JIS F7304 16K:

Design Standard: JIS F7304-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa

Flange size as per JIS B2220 - 16K

Main Material:

1- Body: Bronze (BC6) / Brass

2- Disc: Bronze (BC6) / Brass

3- Stem: Brass (C3771BD)

4- Bonnet: Bronze (BC6) / Brass

5-Handwheel: Cast Iron (FC200)

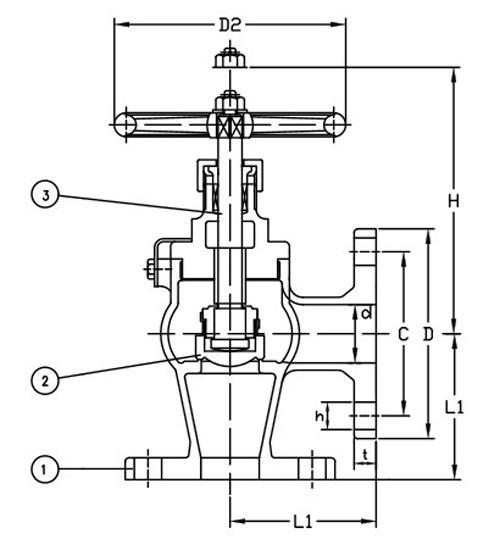

Main Size List(mm):

IMPA750151
IMPA750152
IMPA750153
IMPA750154
IMPA750155

IMPA CODESizeLDCNo. of BolthtHD2
750151157095704151212080
75015220751007541514125100
75015325851259041514140125
750154329513510041516145125
7501554010014010541916160140
