JIS F3019 MARINE BRONZE GATE VALVE HEAD FOR MARINE USE,SELFCLOSING GATE VALVE WITH SPING

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Brand: OEM
Product Description

China Marine Bronze Self-Closing Gate Valve Head for Sounding Pipe JIS F3019:

Design Standard: JIS F3019-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-0.3Mpa, Seat-0.2Mpa

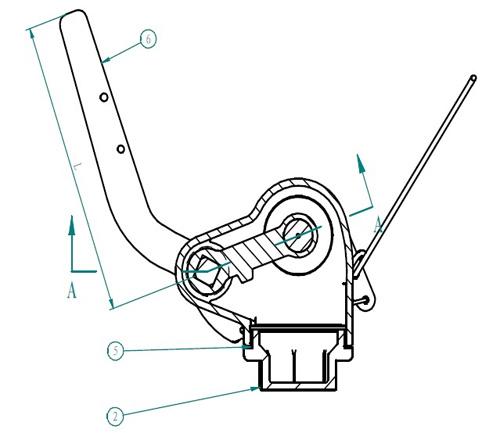

Main Material:





1-Body: Bronze (BC6)

2-Bonnet:Bronze (BC6)

3-Disc: Bronze (BC6)

4-Stem: Brass (C3771BD)

5-Gasket: NBR

6-Lever: Cast Iron

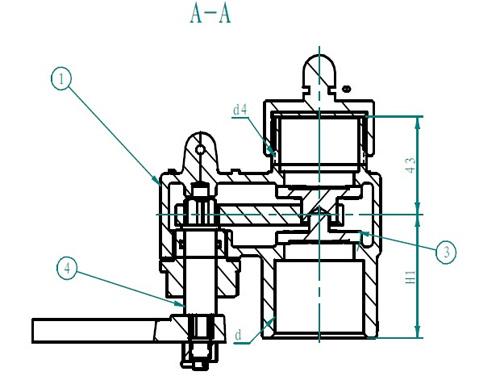

Main Size List(mm):



Size d d4 H1 L
40 G1-1/2 G1-1/2 54 160
50 G2 G2 60 160

The description/sizes may be different with goods, please check with us when order.
