TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight

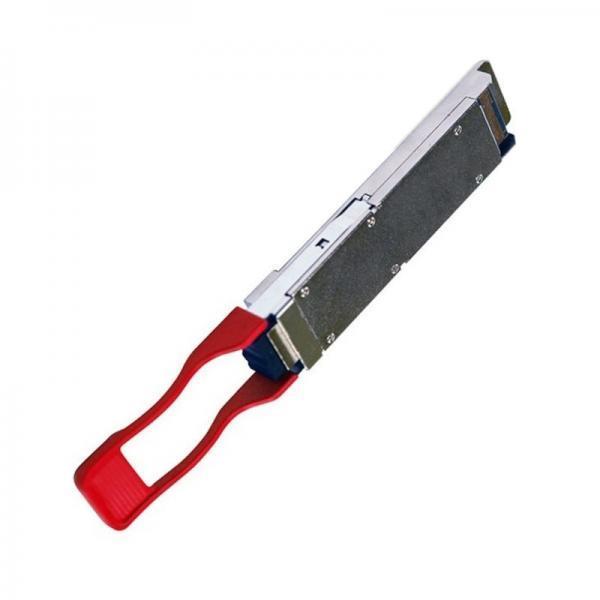

InnoLight 100G QSFP28 ER4 Lite Optical Transceiver TR-FC13D-N00
| Fiber Type | Single mode |
| Weight | 0.06kg |
| Warranty | 1 Year |
| Tx power | -2.5 to + 6.5 dBm |
| Rx sensitivity | -15.65 to -3.5 dBm |
| Extinction Ratio | 2.0dB |
| Max Power Consumption |
3.5W
|
| Applications | 100GBASE-ER4 Ethernet Links |
- Hot pluggable QSFP28 MSA form factor
- Compliant to IEEE 802.3ba 100GBASE-ER4
- Up to 25km reach for G.652 SMF without FEC
- Single +3.3V power supply
- Operating case temperature: 0~70oC
- Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
- Receiver: 4x25Gb/s APD ROSA
- 4x28G Electrical Serial Interface (CEI-28G-VSR)
- Maximum power consumption 4.5W
- Duplex LC receptacle RoHS-6 compliant
- 100GBASE-ER4 Ethernet Links
- Infiniband QDR and DDR interconnects
- Client-side 100G Telecom connections
The QSFP28 100G TR-FC13D-N00 is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-ER4 Lite standard.
The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.
Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of QSFP28 100G TR-FC13D-N00?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT): -5 to 85°C(23 to 185°F)
Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)
Storage temperature range: -40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
