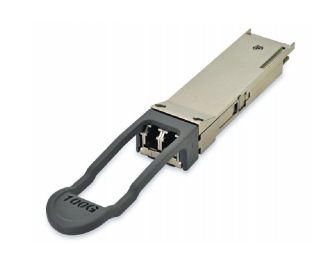

Arista XVR-10167-20 QSFP-100G-SWDM4 Compatible LC MMF 100M QSFP28 module

SWDM4 is four short wavelength division multiplex, as the latest new solution to provide seamless migration for 10G Infrastructure into 40G and 100G Ethernet. The SWDM4 mux/demux four short wavelength region optical lane (850nm, 880nm, 910nm, 940nm) and couple into the duplex MMF via LC connector. The 100G SWDM4 optics serves as the lowest total link cost for enterprise and small cloud data centers.

Top-Trans QSFP28 100G Module is designed for 100GBASE archictecture. This QSFP28 SWDM4 module uses SWDM VCSEL transmitter and PIN receiver to create the 100Gigabit connection via the fiber link over up to 70M in OM3 MMF, 100M in OM4 MMF, 150M in OM5 MMF. This QSFP28 module features the LC duplex connector which can interoperate with other QSFP28 SWDM4 optics. This QSFP28 module is fully MSA compliant and features the online DOM/DDM to monitor the operation status. This QSFP28 module can be programmed with the compatibility to interoperate with Arista Network QSFP28 ports.

• Hot-pluggable QSFP28 form factor

• Supports 103.1Gb/s aggregate bitrate

• Power dissipation < 3.5W

• RoHS-6 compliant

• Commercial case temperature range of 0°C to 70°C

• Single 3.3V power supply

• Maximum link length of 100m on OM4 Duplex Multimode Fiber (MMF)

• 4x25Gb/s 850mm VCSEL-based transmitter

• 4x25G CAUI-4 electrical interface

• Duplex LC receptacles

• I2C management interface

​Compatible platform

Arista 7050X3, 7050X4, 7358X4, 7060X, 7260X, 7130, 7170, 7280R, 7280R3, 7300X, 7388X5, 7368X4, 7500R, 7500R3, 7800R3

Parameters

FAQ

• Can I use your QSFP28 module with Arista original QSFP-100G-SWDM4 optics?

          Yes, It can interoperate with Arista optics

• What's your optic warranty terms?

​

          1 year free replace, 3 years free repairment for non-human made hardware defects

• What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?

Our optics is produced using fresh new components through the strict QC control over parameter and performance test through error detector and eye diagram. The qualification ratio is over 99.9%. If any quality defects happen within the warranty, we will arrange the replace/repair service immediately
