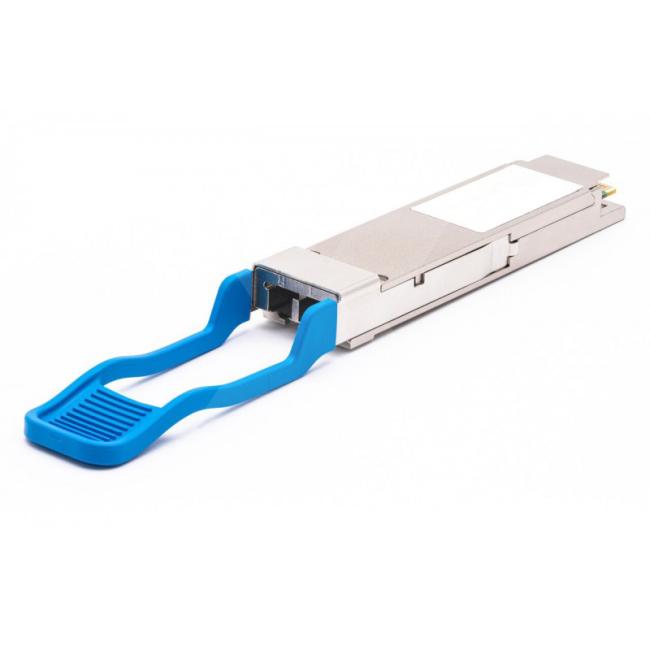

Compatible Juniper QSFP-100G-LR4-C 740-061409 QSFP-28, 100G-LR4 Transceiver SMF 10km Optical Module

Part Number 740-096178
Speed 100 Gigabit Ethernet
Breakout CapableNo
Transceiver Type QSFP28
Product Type Optical Transceiver
Connector Duplex LC
Monitoring Available Yes
Digital Optical MonitoringYes
Additional InformationThese transceivers interoperate with the QDD-4X100G breakout optics. For example, the QDD-4X100G-FR interconnects with four QSFP-100G-LR transceivers. The QSFP-100G-LR transceivers interconnect in single links (QSFP-100G-LR to QSFP-100G-LR or to QSFP-100G-FR) and interoperate at the shortest link length. The QSFP-100G-LR transceivers are not compatible with earlier-generation 100-Gbps transceivers (for example, QSFP-100G-CWDM4 and QSFP-100G-LR4).Standard: 100G Lambda MSA, 100G-LR IEEE P802.3cu, 100GBASE-LR1MSA compliance (SFF, for e.g. SFF-8665)SFF-8665Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx output power
Rx received optical power
Supported applications100G-LR or 100GBASE-LR1 (clause 140), CAUI-4 (no FEC)Signaling rate, each lane
Host lane: NRZ; 25.78125 GBd ± 100 ppm
Media lane: PAM4; 53.125 GBd ± 100 ppm
Transmitter fibers1
Transmitter wavelengths (range)1304.5 nm to 1317.5 nm
Receive lane wavelengths (range)1304.5 nm to 1317.5 nm
Transmitter output power, each lane (minimum)-1.4 dBm
Transmitter output power, each lane (maximum)4.5 dBm
Transmitter and dispersion eye closure for PAM4 (TDECQ), each lane (maximum)3.4 dB
Receiver input power, each lane (minimum)-8.2 dBm
Receiver input power, each lane (maximum)4.8 dBm
Receiver sensitivity (OMA), each lane (maximum)
For TECQ < 1.4 dB: -6.1 dBm
For 1.4 dB ≤ TECQ ≤ 3.4 dB: -7.5 + TECQ dBm
Stressed receiver sensitivity (OMA) each lane (maximum)-4.1 dBm
Cable typeSMF
Core size/cladding9/125 µm
Fiber gradeIEEE Clause 140.10.1: IEC 60793-2-50 type B1.1, type B1.3, or type B6_a or requirements in IEEE Table 140–13 where they differ.
Distance10 kmMaximum Power consumption (W)4.0 W
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
Typical Weight & Dimensions
Weight: 0.2 kg
Height: 13.5 mm
Width: 18.35 mm
Depth: 73.4 mm
