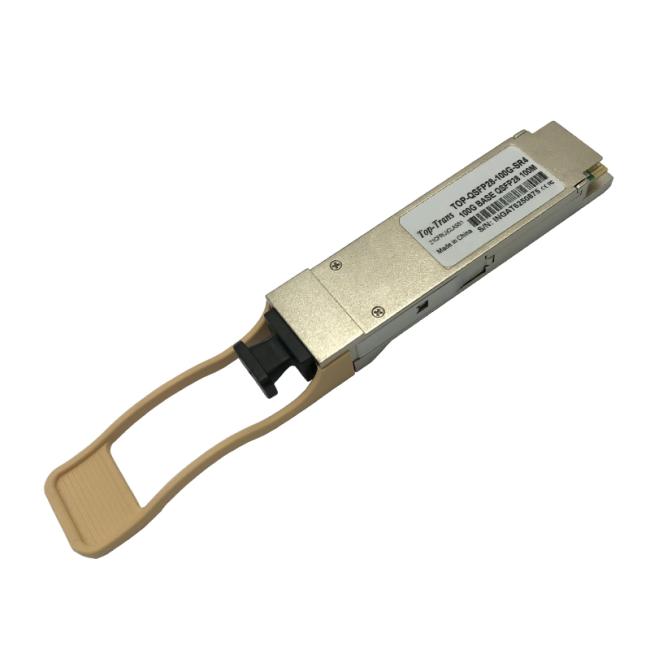

02311GBW QSFP28-100G-SR4 100G QSFP28 Transceiver Multimode 850NM 100M MMF MPO

Description Of Fiber Optic Transceiver

Brand Cloud Engine switches are popular for application in campus & data center networks. The fast development of 5G & IoT generates explosive data within the enterprise data center and drives increasing demand on high performance, high bandwidth and low latency agile networks. 100G Ethernet gradually becomes the mainstream network architecture and 400G Ethernet at the corner.

Top-Trans QSFP28 100G Module is designed for 100GBASE architecture. This QSFP28 SR4 transceiver uses 850nm VCSEL transmitter and PIN receiver to create the 100Gigabit connection via the fiber link over up to 700m via OM3 MMF and 100M via OM4 MMF. This QSFP28 module features the MPO-8/MPO-12 connector which can interoperate with other QSFP28 SR4 optics. This QSFP28 module is fully MSA compliant and features the online DOM/DDM to monitor the operation status. This QSFP28 module can be programmed with compatibility to interoperate with Huawei QSFP28 ports.

Specification Of Fiber Optic Transceiver

Feature Of Fiber Optic Transceiver

• 4 independent full duplex channels

• Up to 25Gbps data rate per channel

• QSFP28 MSA Compliant

• Compliant to IEEE 802.bm 100GBASE-SR4

• Operating case temperature: 0~70℃

• Receiver: 4x25Gb/s PIN ROSA

• 4x25G Electrical Serial Interface (CEI-28G-VSR)

• Maximum power consumption 3.5W

• MTP/MPO Optical connector

• RoHS-6 compliant

​Compatible platform

CE5800 CE6800 CE7800 CE8800 CE9800 CE12800 CE16800 S12700E Switches

Application of Fiber Optic Transceiver

• Data Center Interconnect

• 100GBASE-SR4 Interconnect

• Infiniband 100G EDR

​

QSFP28 Transceiver List

FAQ

• Can I use your QSFP28 module with Huawei original 02311GBW QSFP28-100G-SR4 optics?

​

Yes, this is the MSA QSFP28 SR4 Transceiver. It can interoperate with other brand

QSFP28-100G-SR4 optics.

• Can your QSFP28 module support the 100G Breakout application?

Yes, this is the Parallel 850nm QSFP28 transceiver.

Using MPO to 4 * LC Duplex cable MMF, it can break out and connect with

four of 25G SFP28 SR MMF optics.

• What's your optic warranty terms?

​

1 year free replace, 3 years free repairment for non-human made hardware defects

• What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?

Our optics is made by fresh new components through the strict QC control on digital & optical parameters, performance and reliability test through error detector, eye diagram and Industrial Oven. The qualification ratio is over 99.9%. If any quality defects occurs within the warranty, we will arrange the replace/repair service immediately.
