Compatible 10GBASE-LR SFP+ 1310nm 10km DOM FTLX1471D3BCV-IT

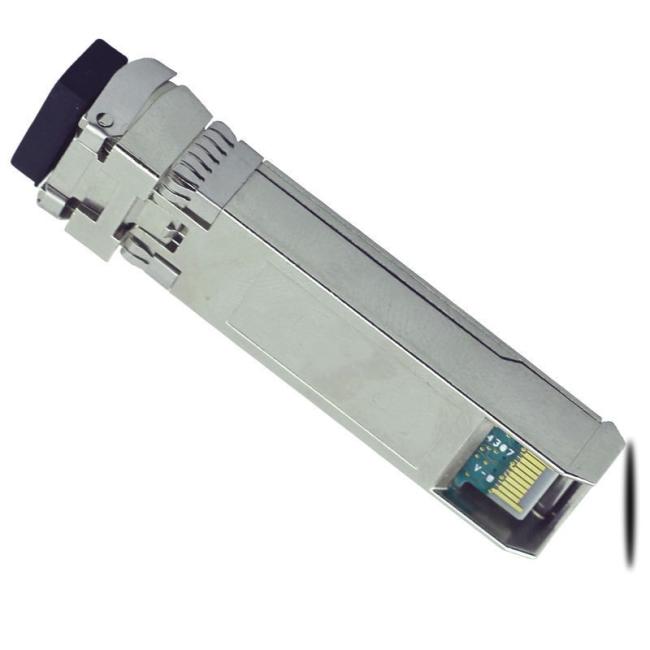

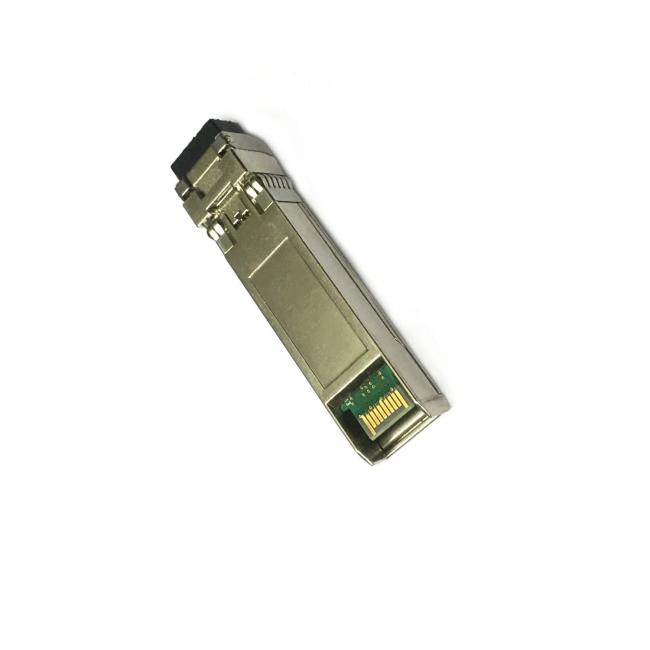

Compatible 10GBASE-LR SFP+ 1310nm 10km DOM optical module Transceiver FTLX1471D3BCV-IT
| Fiber Type | Single mode |
| Weight | 0.03kg |
| Warranty | 1 year |
| Tx power | -8.2 to +0.5 dBm |
| Rx sensitivity |
-14.4 dBm |
| Extinction Ratio | 3.5 dB |
| Power Consumption | 1.0 W |
| EMC | Yes |
Features
- Hot-pluggable SFP+ footprint
- Supports 1/10.3Gbps
- Power dissipation < 1W
- RoHS-6 compliant (lead-free)
- Commercial temperature range 0° C to70° C
- Single 3.3Vpower supply
- Up to 10km
- 4700 MHZ-kmOM4 MMF
- Heated 1310nm VCSEL laser
- Duplex LC connector
- Receive Type PIN
Application
- 10GBASE-LR/LW 10G Ethernet
- 10GFC
- 8GFC
Description
Intel FTLX1471D3BCV-IT r use top quality DFB Laser transmitter with operating at nominal wavelength 1310 nm and 1310 nm PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, which provide diagnostic information about the present operating conditions.
Our version of compatible Intel FTLX1471D3BCV-IT transceiver operates in Standard 0°-70°C temperature range and has Double LC interface.
Module supports 1.25-10.31 Gbps data rate and such applications as 10G Ethernet (10.31 Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95 Gbps).
SFP+ Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking.
Consequently, most popular applications are Internet Service Provider (ISP) routing and switching equipment, Mobile operator Core, Backhaul and Fronthaul links, Data Center and Enterprise Networks for Ethernet connections and other optical links.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
A4: We have professional testing equipment and QC team. Every unit will be double tested with perfect performance before shipping.
Q5.How about the shipment?
A5: We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation
Warranty: 1 Year
