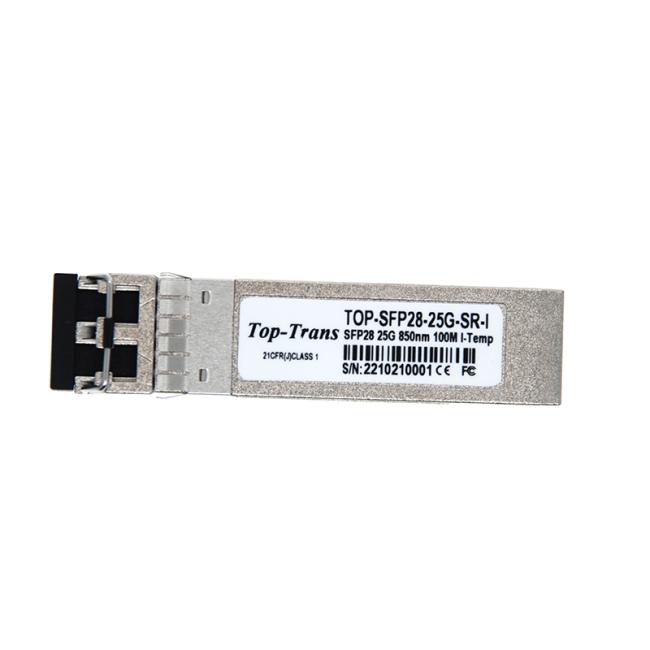

Compatible Mellanox MMA2P00-AS Compatible SFP-25G-SR SFP28 850NM 100M Optical Transceiver

Parameters

Explosive data volume from the social platforms, video content and cloud applications drive data center upgrading the infrastructure network bandwidth from 1G/10G to 25G/40G/100G/200G/400GbE. 25GbE has become the mainstream access layer configuration to interconnect servers, NICs, and TOR/EOR/MOR switches without replacing the existing 10G cabling system.

Top-Trans SFP-25G-SR is a dual-rate 10G 25G transceiver which can function as an intermediate for data center transformation into 25GbE. Using MPO-LC breakout cables, it can allow the 25GbE-SR network to interoperate with next-generation QSFP 40GbE/100GbE SR4 Infrastructure. This SFP28 module supports the transmission distance of 100M over OM4 Multimode Fiber (70 over OM3). This SFP28 module offers high speed, low latency, low power consumption connection fully compliant with IEEE 802.3by, IEEE 802.3cc, SFF-8402, SFF-8472, 21CFP-1040 LC#50 7/2001. This SFP28 module features build-in DDM/DOM via the I2C Interface to monitor the operating status.

Key Features

• Hot-pluggable SFP28 form factor

• Supports 10G/25.78Gbps data rate

• Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

• 850nm VCSEL laser and PIN photo-detector

• Internal CDR on both Transmitter and Receiver channel

• Duplex LC receptacle

• Single 3.3V power supply

• Power dissipation < 1W

• Digital diagnostics functions are available via the I2C interface

• RoHS-6 compliant

• Commercial case temperature range: 0°C to 70°C

​

Protocol

• 10/25GBASE-SR Ethernet

• 25G CPRI RAN

• 32G Fiber Channel

• Infiniband EDR ​

​

​Compatible

• Cisco SFP-10G-SR-S, SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-25G-SL

• Mellanox MFM1T02A-SR, MMA2P00-AS,

• Dell EMC 407-BCBK, 407-BBYP, 407-BBOU

• Avago AFBR-725SMZ, AFBR-57G5AMZ, AFBR-734ASMZ, AFBR-735JAMZ

​

Fibre optic network architecture

FAQ

• What delivery method do you provide?

​

For Trial orders <500pcs, The goods will be sent by Express through DHL, FedEx, UPS, Aramex etc

For Large orders, there can choose air shipment, land shipment and sea freight

• How can I order your SFP?

​
Please send an inquiry through our website and leave your valid contact

Our Sales will touch you shortly and they will help handle your order

We support the payment via T/T, West Union, Paypal

​​

• What else SFP do you provide?

​

Topstar is an integrated SFP transceiver solution provider, with a reliable supply chain to

distribute brand original cisco, Finisar, brocade, innolight, dell-EMC, Avago, source etc transceiver

and joint factory to do OEM for 10G to 400G bandwidth Optical Transceiver.

• What brand compatibilities have your SFP been verified?​

​

Nokia-Alcatel, Ericsson, Cisco, Dell-EMC, Juniper, Arista, Extreme Network, Fortinet, 3COM, BDCOM, ZTE, DCN
