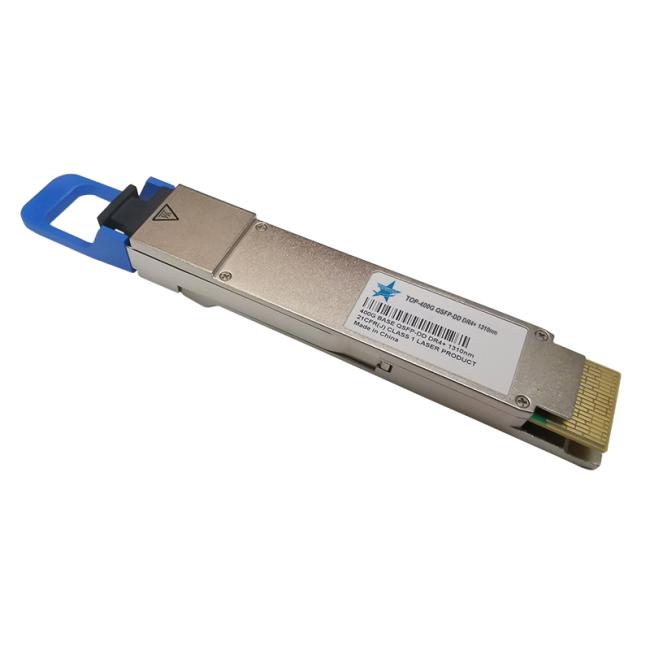

Original Innolight T-DP4CNT-N00 400G QSFP-DD DR4+ 1310nm 2km Optical Module

This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFPDD) optical module designed for 500m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.

Parameters

PRODUCT FEATURES

• QSFP-DD MSA compliant

• Parallel 4 Optical Lanes

• IEEE802.3bs Specification compliant

• Up to 2km transmission on single mode fiber (SMF) with FEC

• Operating case temperature: 0 to 70oC

• 8x53.125Gb/s electrical interface (400GAUI-8)

• Data Rate 106.25Gbps (PAM4) per channel.

• Maximum power consumption 12W

• MPO-12 connector

• RoHS compliant

Applications

• 400G Ethernet

• Infiniband interconnects

• Datacenter Enterprise networking

​

FAQ

Q1. Are your transceiver modules compatible with Cisco?

A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.

Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.

Q3. What are the trade terms?

A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.

Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

We can supply according to your request.
