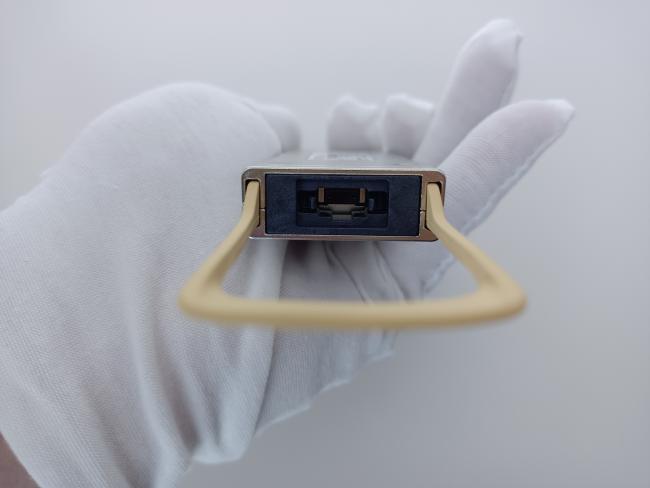

100GBASE-SR10 CPAK Module MMF 850Nm Cisco QSFP28 MPO Fiber Transceivers
100GBASE-SR10 CPAK Module MMF 850 Nm Cisco QSFP28 MPO Fiber Transceivers
Technical Specifications:
Specifications Product Number: CPAK-100G-SR10
Description: Cisco 100GBASE-SR10 CPAK Module for MMF
Connector: 24-fiber MPO/MTP connector
Wavelength: 850nm
Cable Type: MMF (24 fibers) Cable
Distance: 100m @ OM3 150m @ OM4
Transmit Power (dBm): Maximum: -1.0 per lane Minimum: -7.6 per lane
Receive Power (dBm): Maximum: 2.4 per lane Minimum: -9.5 per lane
Transmit and Receive Center Wavelength Range (nm): Ten lanes: 840 to 860 nm
The Cisco CPAK-100G-SR10 module delivers 100-Gbps links over 24-fiber ribbon cables terminated with MPO/MTP
connectors. It can also be used in 10 x 10Gb mode along with ribbon-to-duplex-fiber breakout cables for connectivity to ten
10GBASE-SR optical interfaces. It supports link lengths of 100m and 150m on laser-optimized OM3 and OM4 multifiber cables,
respectively.
| Form Factor | QSFP28 |
| Wavelength | 850 nm |
| Connector Type | MPO |
| Media type | Multimode Fiber Modules |
| Reach | 100M |
| Rate | 100G |
