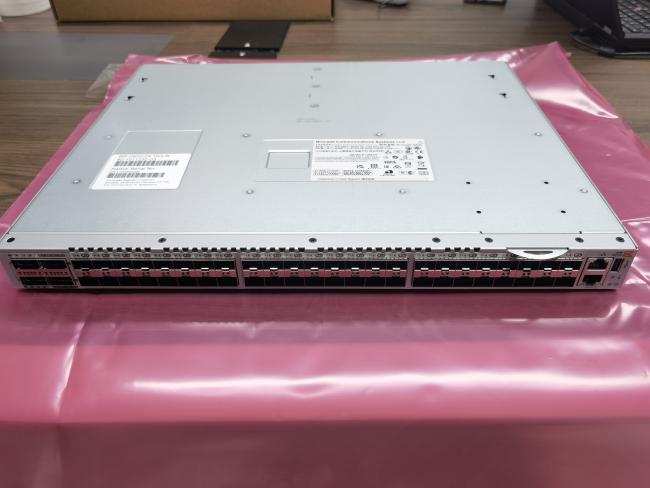

Brocade G620 SAN Switch with 24 Active Ports, Gen 6 Fibre Channel, and 2 Tbps Aggregate Bandwidth
BR-G620-24-16G-R Storage Networking Switch Brocade G620 24 Active Port FC
Brocade G620 Ultra-dense, Highly Scalable, Easy-to-Use Enterprise-Class Switch
Product Description:The Brocade G620 switch meets the demands of hyper-scale virtualization, larger cloud infrastructures, and growing flash-based storage environments by delivering Gen 6 Fiber Channel technology and capabilities. It provides a high-density building block for increased scalability, designed to support growth, demanding workloads, and data center consolidation in small to largescale enterprise infrastructures. Delivering unmatched performance, great port density, and built-in instrumentation, the Brocade G620 accelerates data access, adapts to evolving requirements, and drives always on business.
| Main features | Systems Architecture |
| Power consumption | 204 W with all 64 ports populated with 48×32 Gbps SFP+ SWL optics and 4× (4×32 Gbps) QSFP SWL optics 85 W for empty chassis with no optics |
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Certified maximum | 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Management access | 10/100/1000 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port |
| ISL Trunking | Frame-based trunking with up to eight 32 Gbps SFP+ ports per ISL trunk or up to two 128 Gbps QSFP ports per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. |
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 to 500 Hz |
| Power supply |
Dual, hot-swappable redundant power supplies with integrated system cooling fans
|
HIGHLIGHTS
Organizations can easily enable Brocade Access Gateway mode via Brocade Network Advisor or a CLI.
Key benefits of Brocade Access Gateway mode include:
Improved scalability for large or rapidly growing server and virtual server environments
Reduced management of the network edge, since Brocade Access Gateway does not have a domain identity and appears transparent to the core fabric
Support for heterogeneous SAN configurations without reduced functionality for server connectivity
