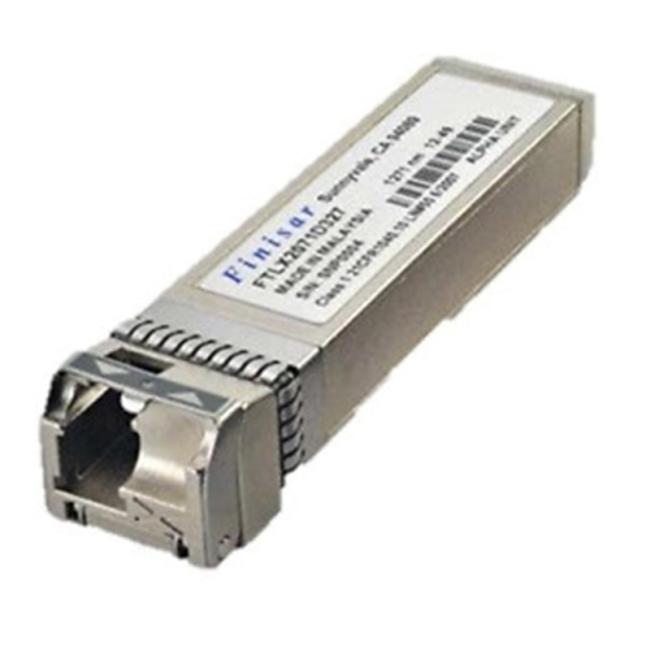

Finisar FTLX2071D333 10G LR 1330nm 10km Fiber Module
Finisar FTLX2071D333 10G LR 1330nm 10km Fiber Module
Parameters
| Fiber Type |
10GBASE-LR4Ethernet |
| Connector | LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | 4 dBm |
| Rx Sensitivity | -27dBm |
| Extinction Ratio | 9 dbm |
| Power Consumption | 1W |
| Single Power Supply | 3.3 V |
Finisar’s FTLX2071D327/FTLX2071D333 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over a single-strand Single Mode fiber. This capability doubles the capacity of installed legacy single mode fiber links. They are compliant with SFF-84311 and IEEE 802.3ae 10GBASELR/LW3 , and 10G Fibre Channel 1200-SM-LL-L4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84725 . The transceiver is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU6 . See Finisar Application Note AN-2038 for more details 7.
PRODUCT FEATURES
- Hot-pluggable SFP+ footprint
- Bidirectional 10G over single strand single mode fiber
- Supports 9.95 to 10.5Gb/s bit rates
- Power dissipation <1W
- RoHS-6 compliant (lead-free)
- Industrial temperature range -40°C to 85°C
- Single 3.3V power supply
- Maximum link length of 10km
- Uncooled DFB
- Receiver limiting electrical interface
- Single LC connector
- Built-in digital diagnostic functions
APPLICATIONS
- 10GBASE-LR/LW 10G Ethernet
- 1200-SM-LL-L 10G Fibre Channel
FAQ
1. Are your Optical Transceivers original?
Yes, all our optical transceivers are guaranteed 100% original!
2. What will you do if I found the product has any quality problem?
We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!
3. What did your company do in terms of quality control?
We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
4. What are the trade terms?
Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Aliexpress Escow, Money Gram
Warranty: 1 Year
5. Do you have compatible ones?
Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
