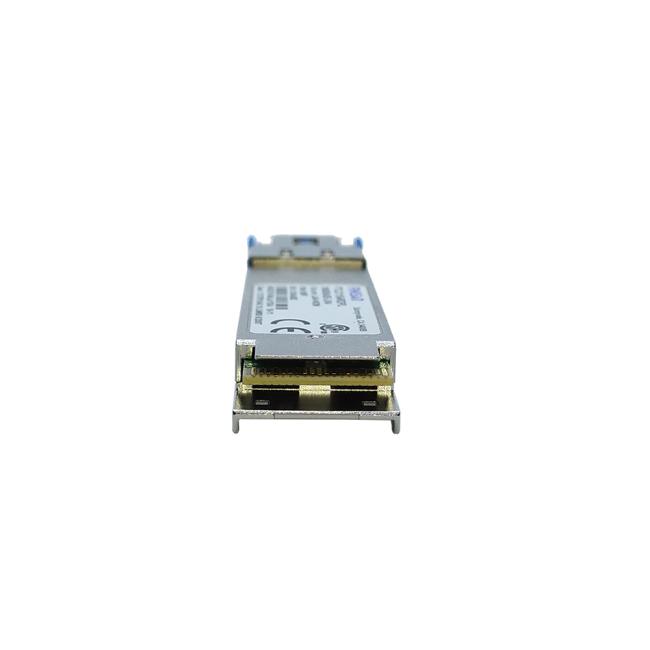

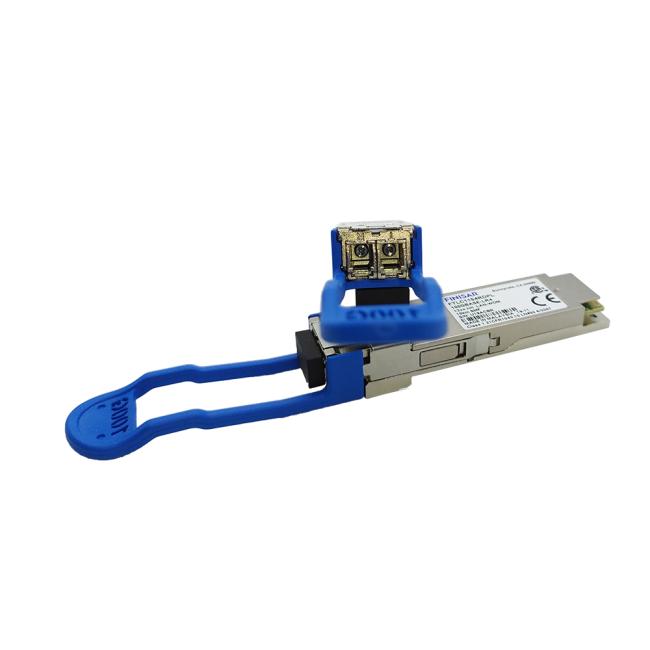

100G 2km Gen2 QSFP28 FTLC1155RGPL Finisar Optical Transceiver 100G QSFP28 CWDM4
Finisar FTLC1155RGPL Optical Moduel 100G QSFP28 2KM 1310NM ,100G CWDM4 2km Gen2 QSFP28
Parameters
| Fiber Type |
10GBASE-LR4Ethernet |
| Connector | LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -3 dBm |
| Rx Sensitivity | -9.4 dBm |
| Extinction Ratio | -8.2~-8.8 dbm |
| Power Consumption | 2.5W |
| Single Power Supply | 3.3 V |
Finisar’s FTLC1155RGPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2 km of single mode fiber. They are compliant with the QSFP28 MSA1 , CWDM4 MSA2 and portions of IEEE P802.3bm 3 . Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-2153 4 and AN-21545 . The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU 6 . See Finisar Application Note AN-20387 for more details.
PRODUCT FEATURES
- Hot-pluggable QSFP28 form factor
- Supports 103.1Gb/s aggregate bit rate
- Power dissipation < 3.5W RoHS-6 compliant
- Commercial case temperature range of 0°C to +70°C
- Adaptive CTLE Single 3.3V power supply
- Loss budget of 5 dB
- on up to 2 km of Single Mode Fiber (SMF) [with KR4 FEC]
- 4x25Gb/s CWDM transmitter
- 4x25G retimed electrical interface
- Duplex LC receptacles
- I2C management interface
APPLICATIONS
- 100G CWDM4 applications with FEC
