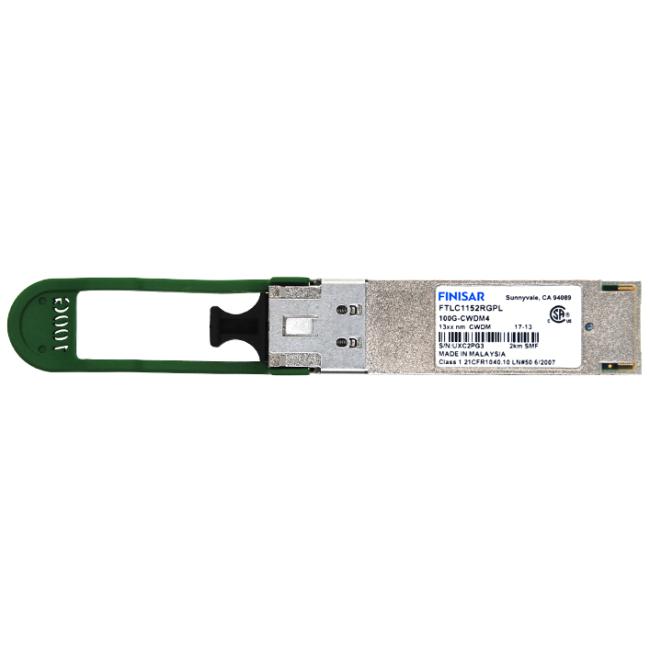

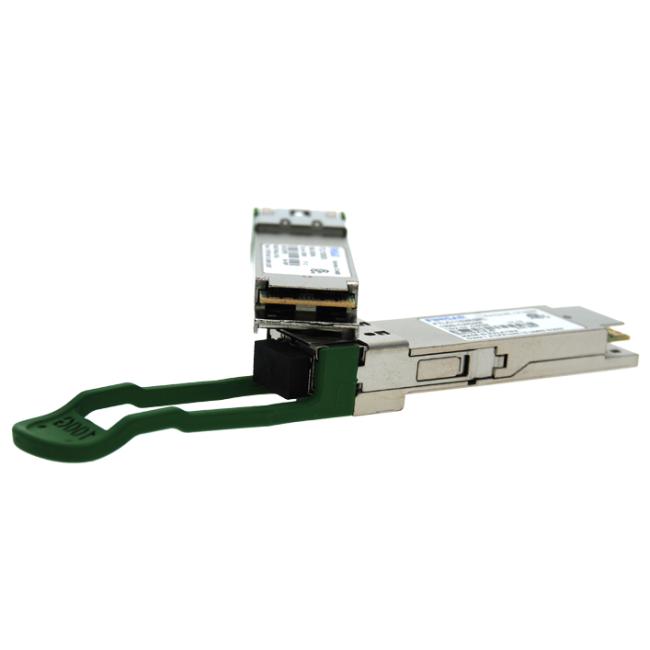

Original Finisar Optical Transceiver FTLC1152RGPL 100G 10km ECWDM4 QSFP28
Original Finisar FTLC1152RGPL Optical Module 100G 10km eCWDM4 QSFP28 Optical Transceiver
Parameters
| Fiber Type |
10GBASE-LR4Ethernet |
| Connector | LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -4-2.5 dBm |
| Rx Sensitivity | 2.5 dBm |
| Extinction Ratio | 3.5dbm |
| Power Consumption | 3.5W |
| Single Power Supply | 3.3 V |
Finisar’s FTLC1152RGPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2 km of single mode fiber. They are compliant with the QSFP28 MSA1 , CWDM4 MSA2 and portions of IEEE P802.3bm 6 . Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-21535 . The transceiver is RoHS-6 compliant and lead-free per Directive 2011/65/EC3 and Finisar Application Note AN-20384 .
PRODUCT FEATURES
- Hot-pluggable QSFP28 form factor
- Supports 103.1Gb/s aggregate bit rate
- Power dissipation < 3.5W
- RoHS-6 compliant
- Case temperature range of 0°C to +70°C
- Single 3.3V power supply
- Loss budget of 5 dB on up to 2 km of Single Mode Fiber (SMF) [with KR4 FEC]
- 4x25Gb/s CWDM transmitter
- 4x25G retimed electrical interface
- Duplex LC receptacles
- I2C management interface
APPLICATIONS
- 100G CWDM4 applications with FEC
