InnoLight QSFP28 100G QSFP28 SR4 Optical Transceiver Module TR-FC85S-N00
InnoLight QSFP28 100G QSFP28 SR4 Optical Transceiver Module TR-FC85S-N00
| Fiber Type | Single mode |
| Weight | 0.06kg |
| Warranty | 1 Year |
| Tx power | -8.4 to + 2.4 dBm |
| Rx sensitivity | -10.3 to +2.4 dBm |
| Extinction Ratio | 2.0dB |
| Single Power Supply |
3.3V
|
| Applications |
Rack to Rack, Data Center
|
- 4 independent full-duplex channels
- Up to 28Gb/s data rate per channel
- QSFP28 MSA compliant
- Compliant to IEEE 802.3bm 100GBASE SR4
- Up to 100m OM4 MMF transmission
- Operating case temperature: 0 to 70oC
- Single 3.3V power supply
- Maximum power consumption 3.5W
- MTP/MPO optical connector
- RoHS-6 compliant
- Rack to Rack
- Data Center
- Infiniband QDR, DDR and SDR
- 100G Ethernet

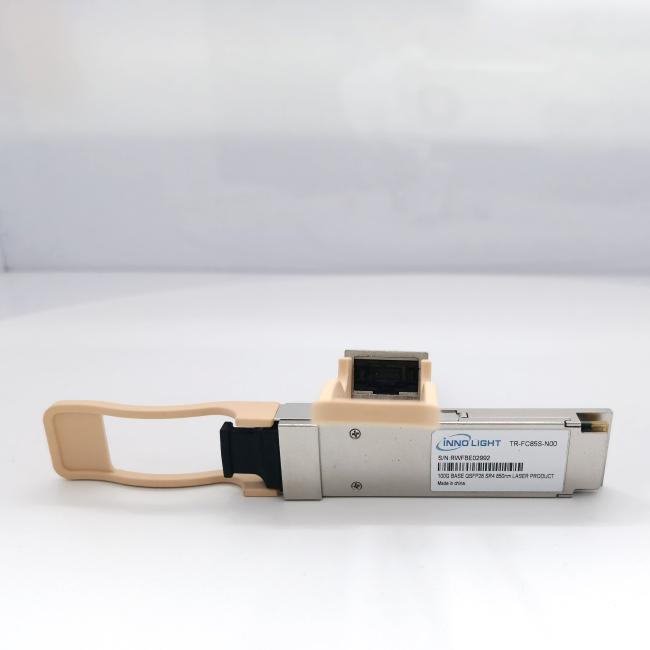

The QSFP28 100G TR-FC85S-N00 is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28 100G) optical module.
It provides increased port density and total system cost savings. The QSFP28 100G full-duplex optical module offers 4 independent transmit and receive channels,
each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of QSFP28 100G TR-FC85S-N00?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT): -5 to 85°C(23 to 185°F)
Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)
Storage temperature range: -40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
