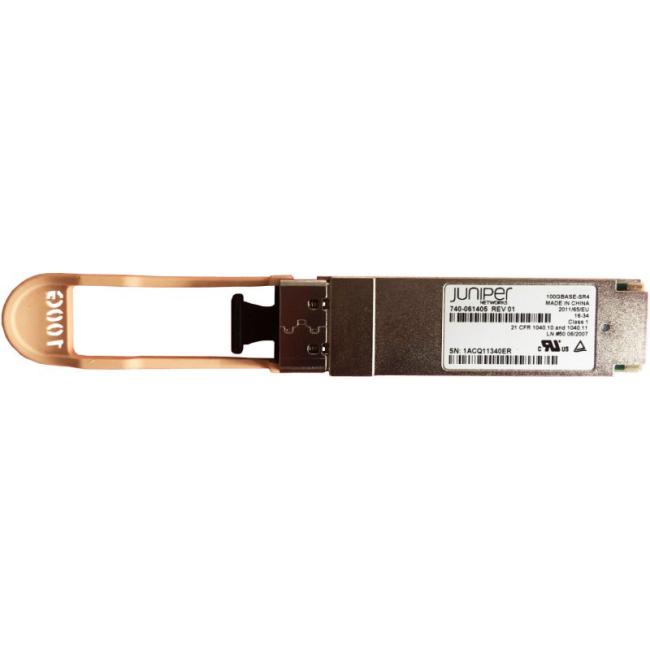

Compatible JNP-QSFP-100G-PSM4 QSFP28 100G base PSM4 optics for up to 500 m transmission
Compatible JNP-QSFP-100G-PSM4 QSFP28 100G base PSM4 optics for up to 500 m transmission
Signaling rate, each lane25.78125 GBd +/- 100 ppm
Transmitter wavelengths (range)840 nm through 860 nm
Receive lane wavelengths (range)840 nm through 860 nm
Transmitter output power, each lane (minimum)–8.4 dBm
Transmitter output power, each lane (maximum)2.4 dBm
Receiver input power, each lane (minimum)–10.3 dBm
Receiver input power, each lane (maximum)2.4 dBm
Cable typeMMFCore size/cladding50/125 µm
Fiber gradeOM3OM4
Effective modal bandwidth2000 MHz x km4700 MHz x km
Distance70 m100 m
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
