Waterproof LED Tape Light Under Cabinet COB Dotless Outdoor 12V 24V
Waterproof LED Tape Light Under Cabinet COB Dotless Outdoor 12V 24V
What is COB LED Strip Lights without dots?
LED dotless tape light means directly package chips on the circuit board (PCB), then drop a layer of glue mixed with phosphor powder on the surface of chips.
Manufacturing no dot LED strip eliminates the wire bonding process of SMD chips and soldering brackets compared with LED tape lights production, it greatly improved the stability of the product and better heat dissipation.
Product details for Turnable White COB Dotless led strip

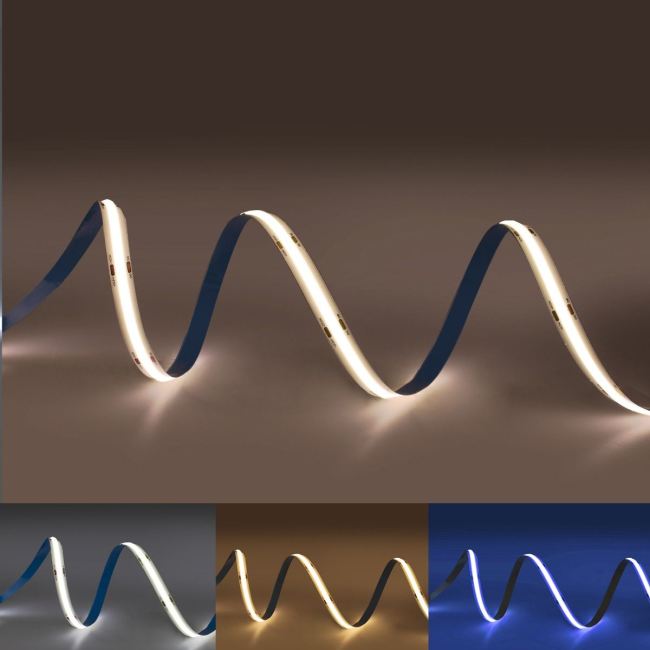

Tunable white COB led strip or CCT adjustable COB led strip, up to 576 chips per meter, no light spots.
With the tunable white led controller, you can change the color temperature from 2700K to 6500K.
Except the regular 3 wire 10mm width PCB tunable white cob led strip.
Datasheet for Turnable White COB Dotless led strip
| Part number |
WES-FCOB-576 |
| LED Quantity |
576 pcs/meter |
| PCB width |
10mm |
| Color temperature (CCT) |
2700K+6500K |
| RA |
>80, >90 |
| Wattage |
10W~20W |
|
Cutable Length |
12V(31.25mm) 24V(27.78mm) |
| IP Rate |
IP20/IP65 |
Featrues
1. This product conforms to the LM80 LED standard, is designed for constant voltage work, uses flip chip, and COB integration process;
2. IP20 grade, suitable for indoor lighting effect rendering, commercial or home ;
3. It can be cut and used, but needs to be re-wired; the back contains 3M double-sided tape, which can be pasted in any fireproof material or aluminum tank for use, design lighting!;
4. The technical principle of this series of products: the blue flip chip excites a variety of different colors of light through a variety of yellow phosphors.
Application
• Architectural Displays Lighting
• Bar Accents Lighting
• Billboards
• Ceiling Lighting
• Cove Lighting
• Eave Lighting
• Gallery Lighting
• Holtel Renovation Lighting
• Landscape Lighting
• Kitchen Counter Lighting
• Merchandise Display Lighting
• Outdoor Lighting
