1000lm Flexible COB LED Strip RoHS 6000k Led Lights Cob 24v
CE RoHS approved COB LED Strip without resistors 24V 10m/Roll
Product Introduction:
1. Adopt Brand Led Chip, high Brightness, Low Light Decay.
Lifespan more than 50000 Hours.
2. Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow.
3. All of Materials Are Accord With Rohs Standards.
4. Easy to Install and Preserve; With 3m Adhesive Tape On the Backside.
5. High Color Efficiency, Uniform Illumination.
6. Beam Angle 180°
7. Packaging: 5 meters per roll/ 10 meters per roll
8. Without resistors on the PCB, less possibility to get damaged during installation
Parameters:
|
Part number |
WES-FCOB-320
|
WES-FCOB-384 |
WES-FCOB-480 |
WES-FCOB-504 |
WES-FCOB-528 |
|
LED Quantity |
320 pcs/meter
|
384 pcs/meter |
480 pcs/meter |
504 pcs/meter |
528 pcs/meter |
|
PCB width |
6mm/8mm/10mm
|
8mm |
8mm/10mm |
10mm |
10mm |
|
Color temperature (CCT) |
2700K 3000K 4000K 6000K
|
2700K 3000K 4000K 6000K |
2700K 3000K 4000K 6000K |
2700K 3000K 4000K 6000K |
2700K 3000K 4000K 6000K |
|
RA |
90
|
90 |
90 |
90 |
90 |
|
Wattage |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
10W |
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
12V(12W) 24V(14W) |
14W |
|
Cutable Length |
50mm |
41.66mm
|
50mm |
50mm |
45.45mm |
|
IP Rate |
IP20/IP65/IP67
|
P20/IP65/IP67 |
P20/IP65/IP67 |
P20/IP65/IP67 |
P20/IP65/IP67 |
Advantages:
1. Reliability
COB strip adopts the flip chip and flip packaging technology, better reliability
2. Better color uniform
One time silicone molding process, which can meet SDCM 3
3. Better products design
Thinner, only 2mm thickness, which is more convenient for product design
4. Easy installation
It adopts the integrated package technology; the resistor and the flip chip are bonded together, more easily to assembly
Application:
1. Architectural decoration Lighting
2. Backing lighting for signage letters
3. Decoration lighting for under water project
4. Archway /Canopy & Bridge Edge Lighting
5. Auditorium walkway lighting
6. Amusement park / Theater lighting
7. Stairway Accent Lighitng
8. Channel letters lighting
9. Furniture Decoration Lighting
10. Cove Lighting etc.

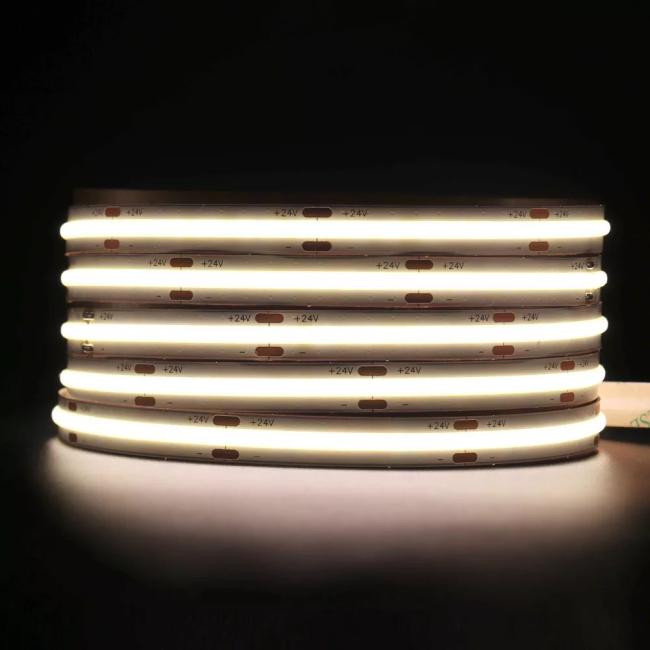

Product Photo
