Diode 0.2w 12v Smd Led Chip 20-24lm 5050 Led Guardrail Tube
Smd5050 Led Diode Chip Lamp Beads Super Bright 0.2w 20-24lm
Introduction

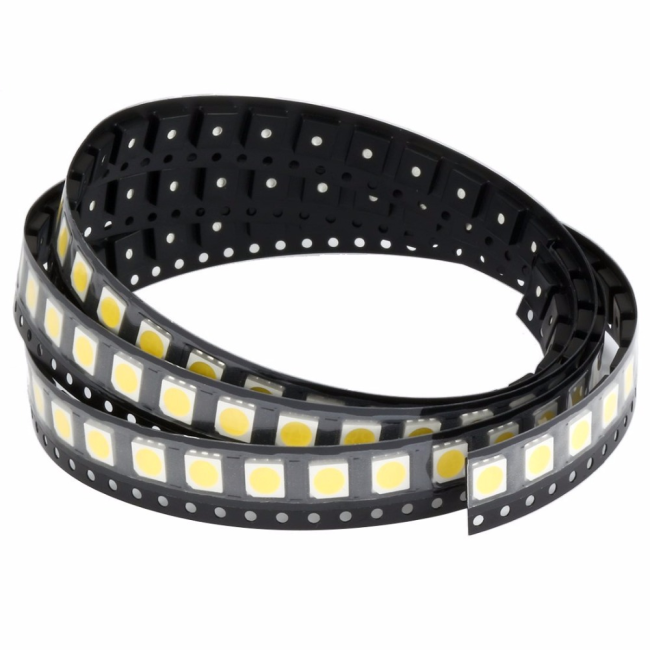

Super bright SMD5050 LED Diods
Power: 0.2W
Light efficiency: 130lm/w
Voltage: 3.0-3.3V
Current: 60mA
Emitting color :3000K /6000K
Dimension:5.0 X 5.0 mm
View Angle: 120 degree
Lifetime: 50,000hrs
Packing : 100pcs/bag
| Items No. | Emitting Color | Wave Length /CCT | Luminous Intensity | Forward Voltage | Forward Current | Viewing Angle |
| 5050 | Red | 625 ±5 nm | 800-2300MCD | 1.7-2.1V | 12mA | 120° |
| Blue | 470 ±5 nm | 800-1500MCD | 2.5-2.8V | 12mA | ||
| Green | 525 ±5 nm | 2800-5800MCD | 2.5-2.8V | 12mA | ||
| White | 8000-20000K | 1800-3000MCD | 7-9V | 40mA |
Advantage
LED has the advantages of low voltage drive, environmental protection and energy saving, high brightness, large scattering Angle, good consistency, ultra-low power, ultra-long life and so on.The control circuit is integrated on the LED, making the circuit more simple, smaller and easier to install.
Application
◆ LED full color light string, LED full color module, LED full color flexible/rigid strips, LED guardrail tube.
◆ LED pixel light source, LED pixel screen, LED special screen, various electronic products, electrical equipment light.
