Transparent middle frame (1*1)/ Cold runner / Three-plates mold No.22676
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

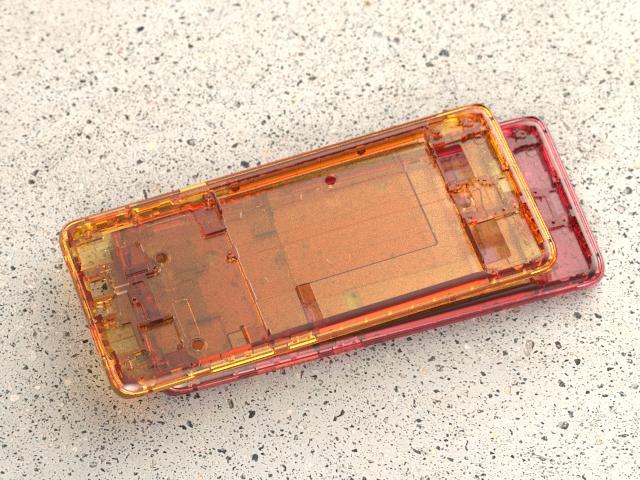

Transparent middle frame (1*1)
No.22676
|
||||||||||||||||

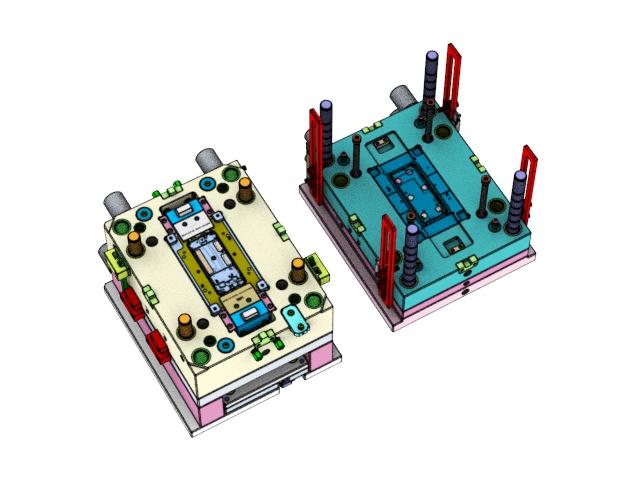

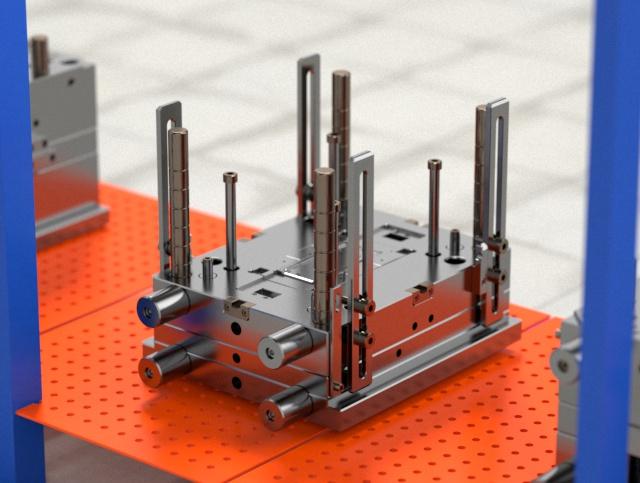

| This is a three-plates mold with pin point gate, self-degating, minimized fate marks, tool life > 500k shots; it uses high quality LMK mold base; harden the cavity and core to have excellent anti-corrosion, anti-strain and anti-wearing performance; no special protection is required for use or storage in humid environment Mold net weight is 524.12 kg; each cavity has 2 core slides, 1 in-core slide, 8 lifters, a total of 6 slides and 16 lifters. | ||
| Part Parameters | |||
| ① Size | 72.88*158.9*8.13mm | ||
| ② Weight | 5.6g | ||
| ③ Material | PC+10%GF | ||

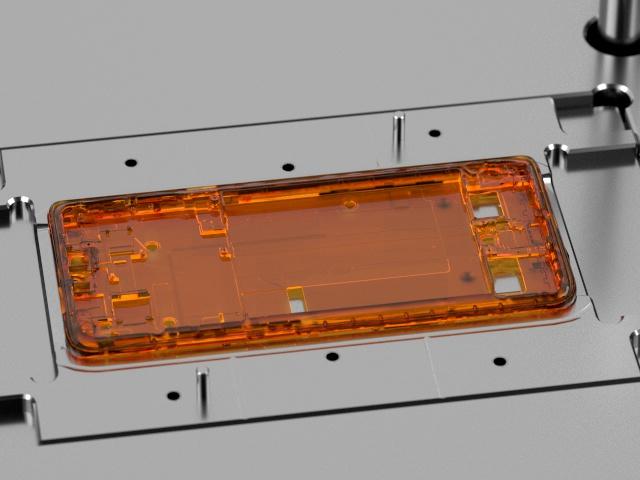

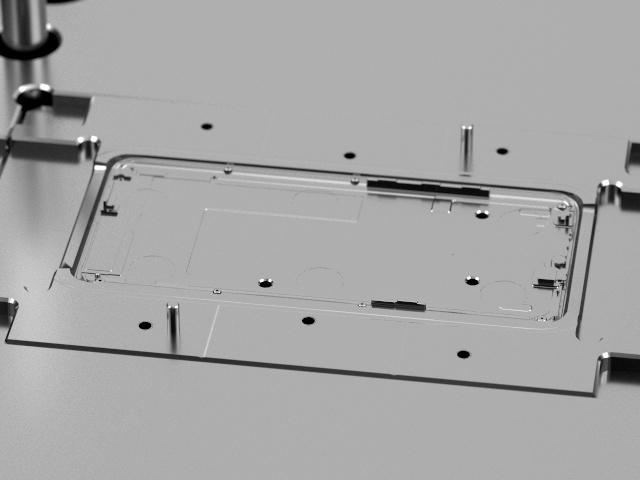

Display diagram
