OEM / ODM : Custom Consumer Electronics Molds / Transparent antenna holder (1*2) No.22677-B
Transparent antenna holder (1*2)
No.22677-B
| Mold details | |||||
| Size (mm) | (L) 300*(W) 300*(H) 316 | ||||
| Net weight (kg) | 172.76 | ||||
| Steel of cavity |
Harden with 1*2/S136 to have higher production performance, anti-wearing and anti-strain performance, reduce maintenance cost and prolong the tool life |
||||
| Steel of core | |||||
| Gate | Pin point gate | ||||
|

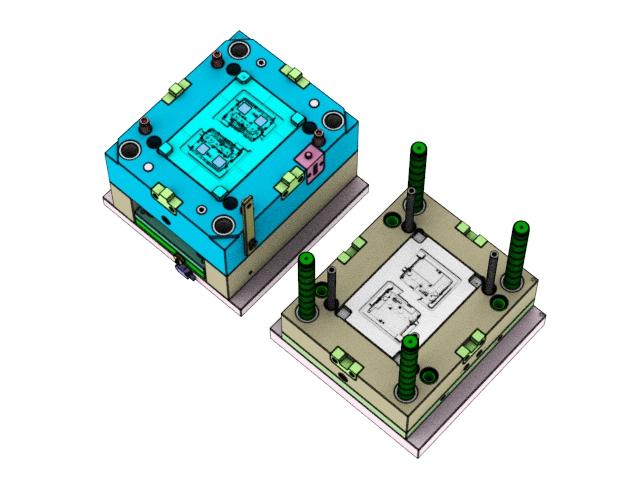

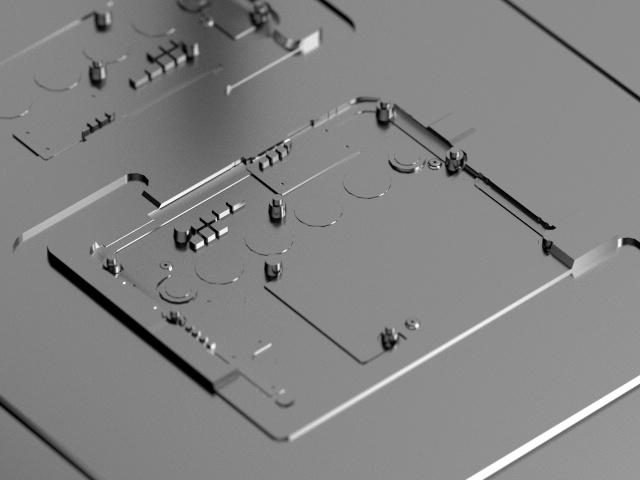

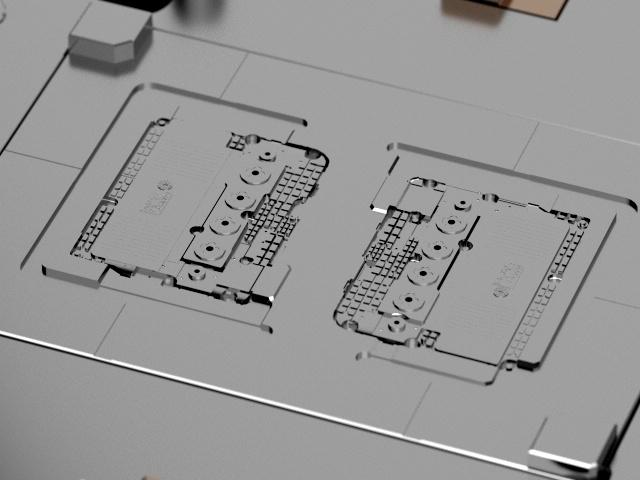

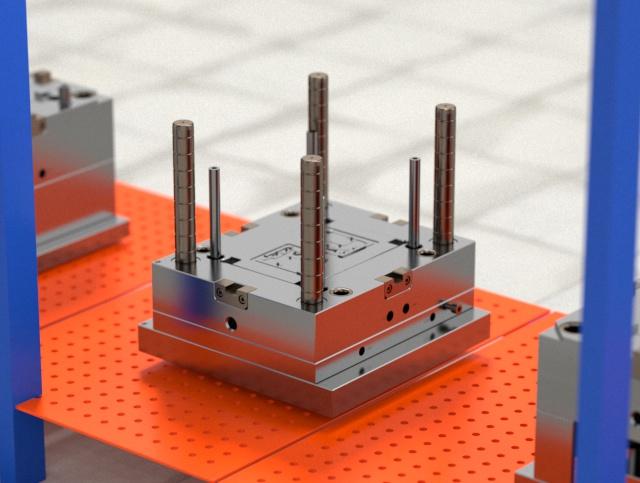

This is a three-plates mold with cold runner, self-degating; mold surface EDM with VDI 24#, semi-gloss finish, w/o machining marks; the molded parts have aesthetic appearance and high glossiness; the molded parts have aesthetic appearance and high glossiness |
|||||
| Part details | |||||
|

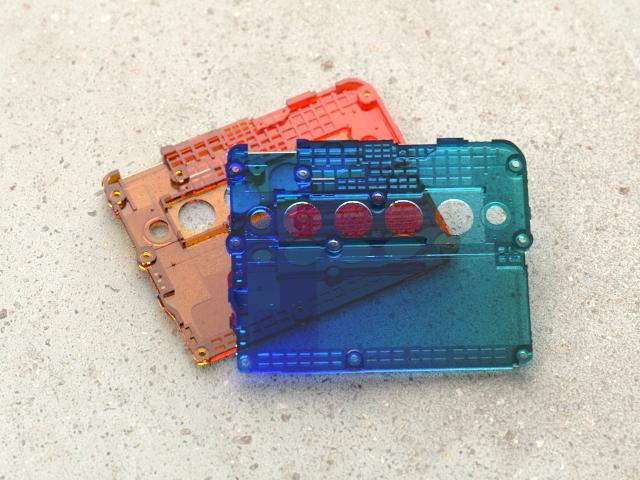

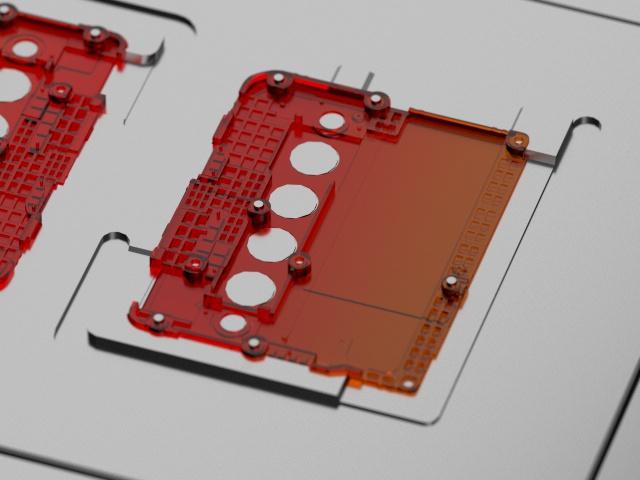

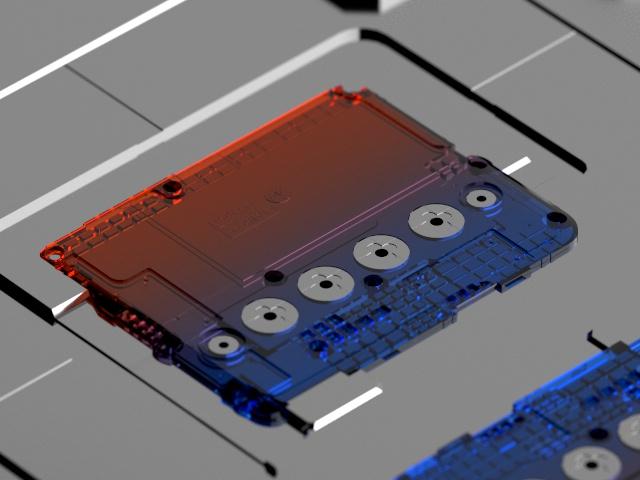

The part material is PC; the part size is 67.15*55.27*3.65mm and the part weight is 4.5g; with precise details and precise fitting |
|||||
|
The mold fits 90T machine, and tool life ≥ 500k shots; with scientific internal structure, short cycle time and minimized cold slug |
|||||
Display diagram
