Button (1*4) / Cold runner / Three-plates mold No.24671
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

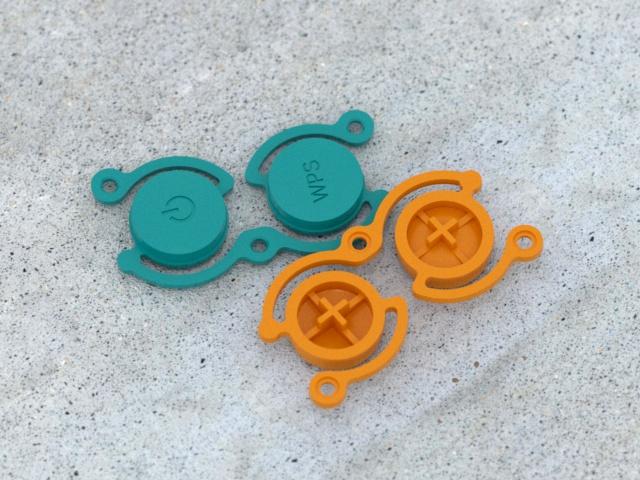

Button (1*4)
No.24671

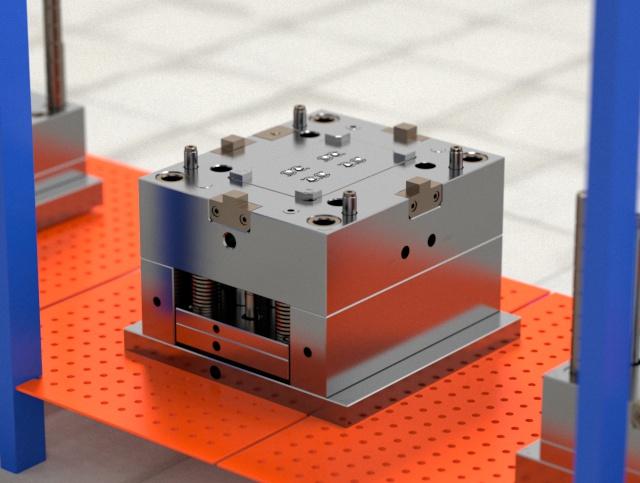

Three-plates mold, self-degating,
meet automated production requirements
| Standard | Gate | Injection/runner type | Surface finish | IMM tonnage | |||||
| LKM | Pin point gate | Cold runner | VDI27# | 110T |
| Mold size (mm) | Steel of cavity | Steel of core | Mold net weight (kg) | ||||
| 280*270*295.4 | Harden with S136 | 132.88 | |||||
| Part size (mm) | Part material | Part net weight (g) | |||||
| 15.7*3.55*31.02 | PC+ABS | 0.7 | |||||
| Design | 3D:UG 4.0 | |
| 2D:CAD | ||

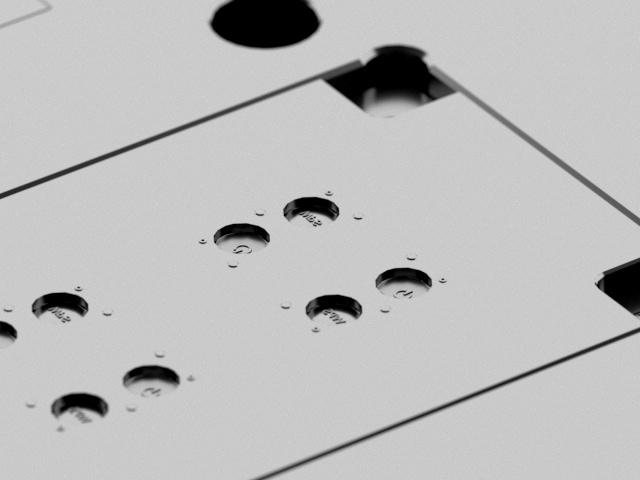

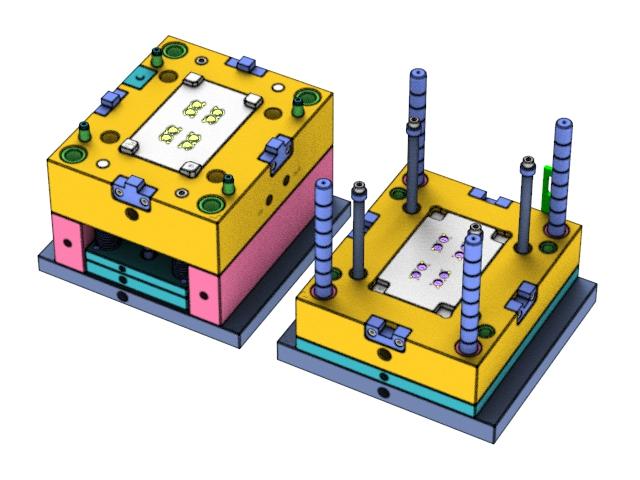

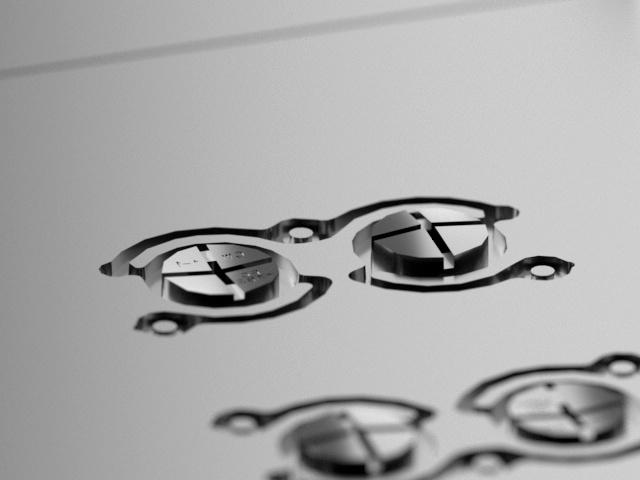

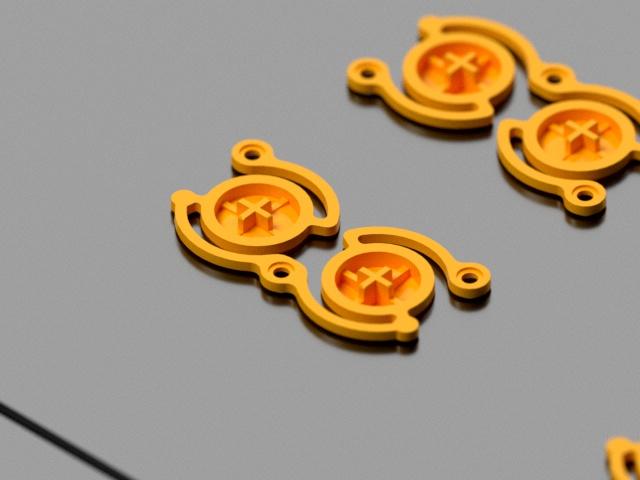

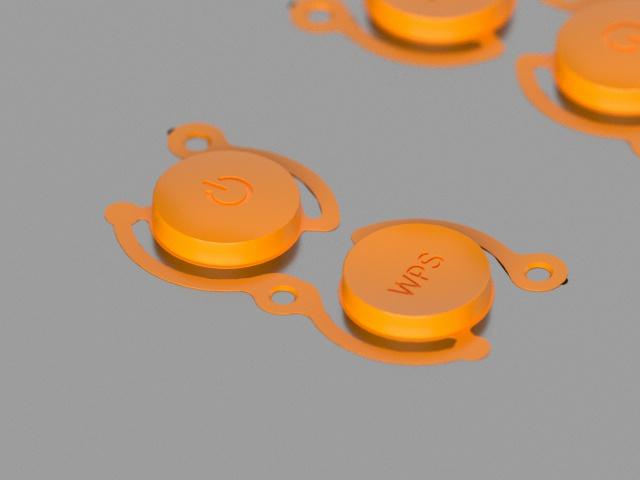

Display diagram
