Medical Instrument PN-2055 (1*2)

No.21061-B

Standard mold base P/N: CI2545.609080.

LKM standard

The mold is a two-plates design with a hot runner system and a cashew gate for the sprue.

It features one slide, and the cavity and core are made of 1*2/S136 mold steel. The mold

surface has MT11010 treatment, with partial surfaces polished to SPI-A2 and SPI-B2

standards. This greatly improves surface hardness, wear resistance, and smoothness,

ensuring parts do not stick to the mold and have a smooth, burr-free surface without flow

marks or gas marks, resulting in a more aesthetically pleasing appearance.

△ IMM tonnage: 130T

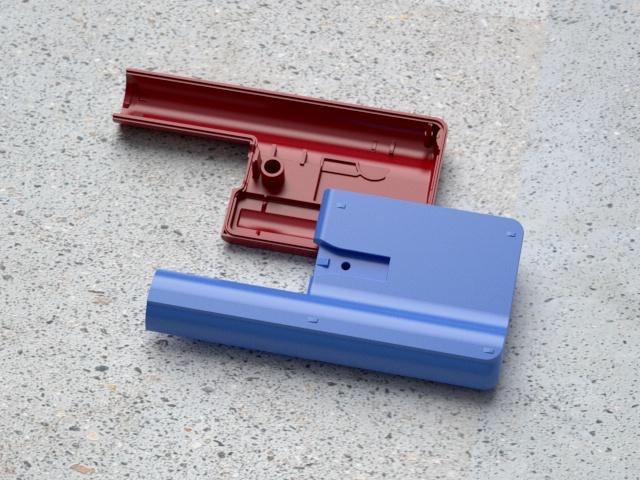

△ Part material: PC/Part weight: 7.3g/Part size: 43.75 X 85.49 X 14.88mm

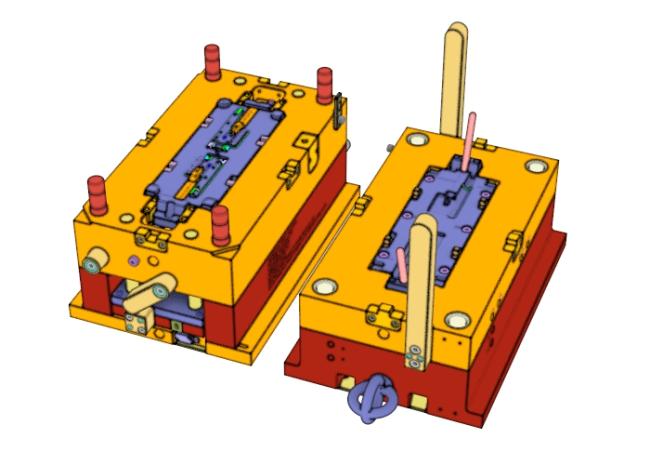

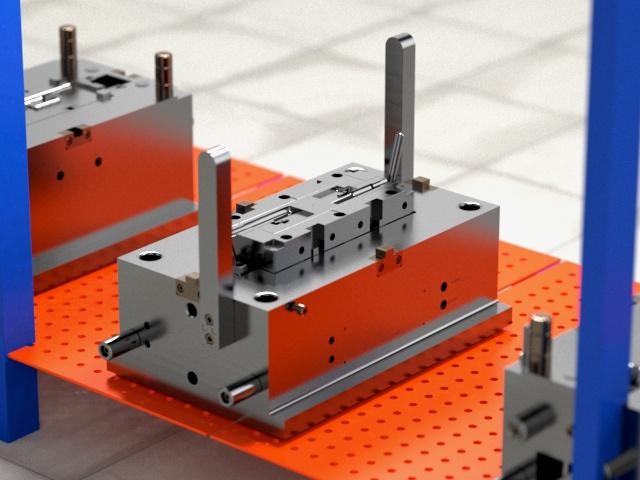

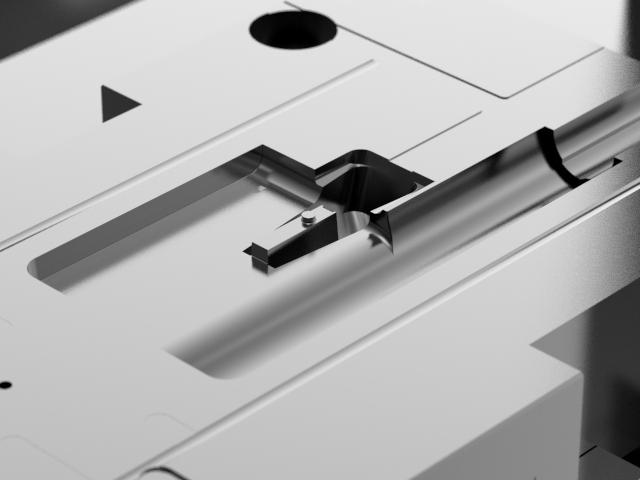

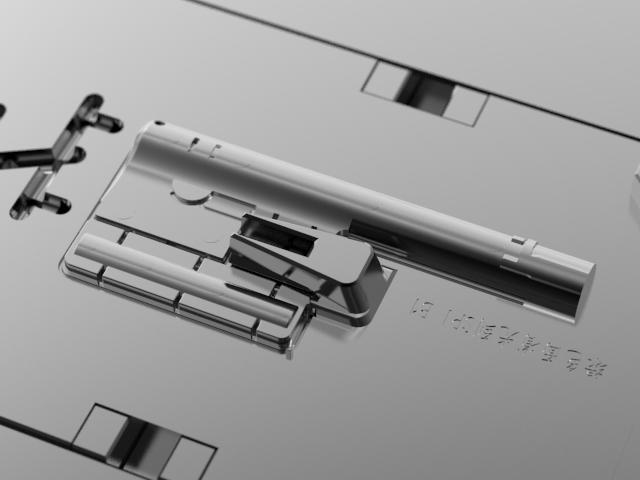

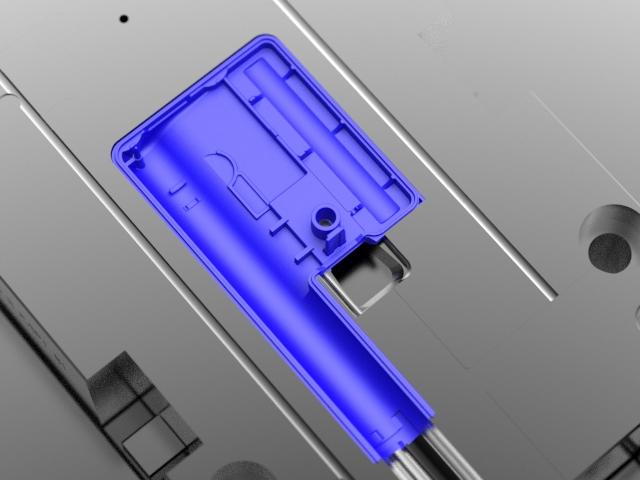

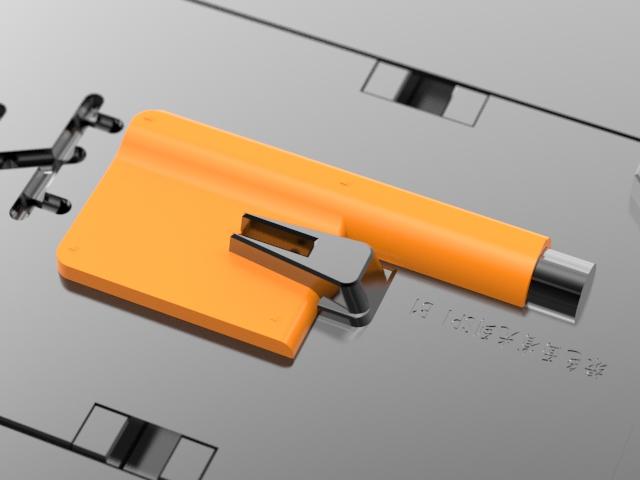

Display diagram
