Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062-B
Medical Instrument PN-1500 (1*4)
No.21062
Standard mold base:CI2025.507070
Standard:LKM

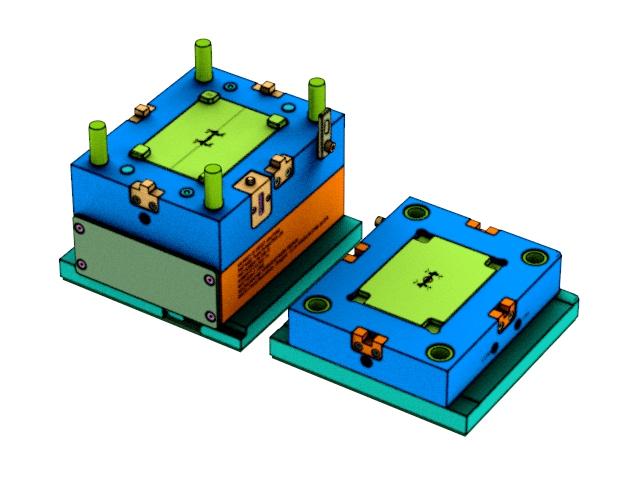

The mold has dimensions of (L)250 x (W)250 x (H)251mm and is a two-plates design with
side gate and cold runner system, allowing for easy processing and degating, making it
suitable for mass production. The mold surface is polished to SPI B-2, improving smoothness,
hardness, corrosion resistance, and wear resistance, with a tool life of up to 500k shots.
The cavity and core are hardened using 1*4/S136, providing high hardness, corrosion
resistance, and wear resistance, enabling continuous production of stable quality parts with
short cycle times and precise details, free of flow marks and gas marks.
| Part material |

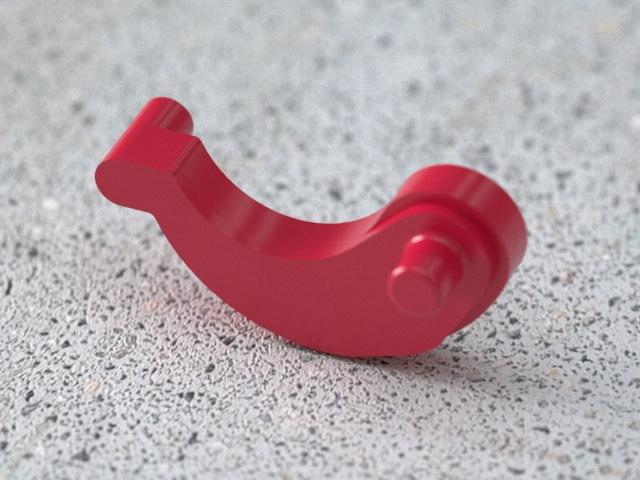

The part size is 3.86 X 7.78 X 3.25 mm and the part weight is only 0.03g |
||||
| POM | |||||
☆ Mold net weight: 94 kg
☆ IMM tonnage: 100T

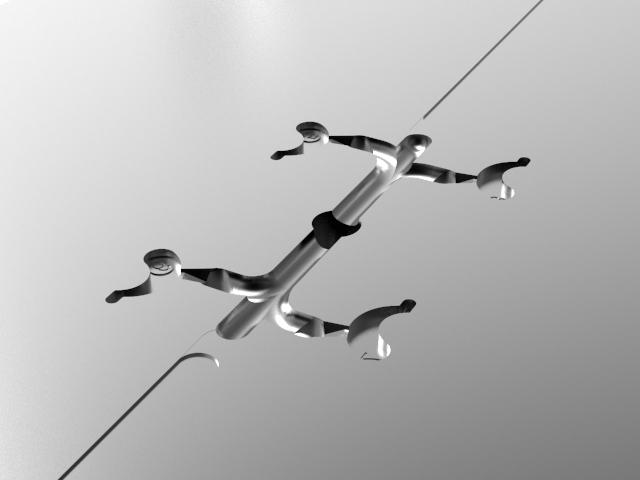

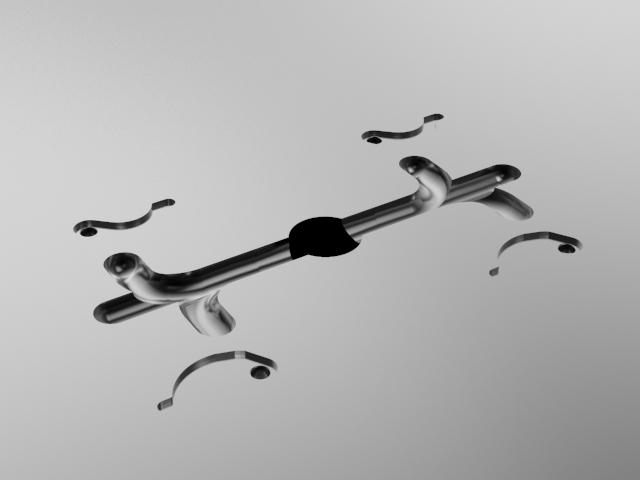

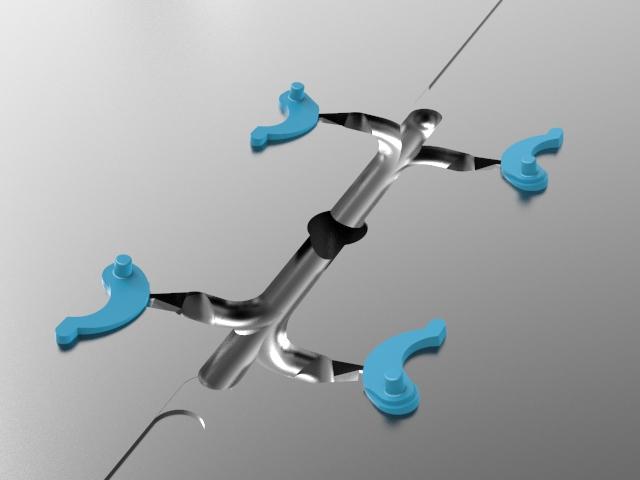

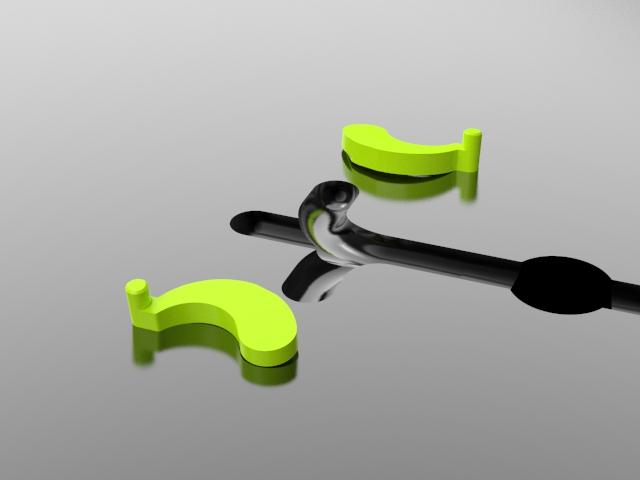

Display diagram
