Transparent Medical Instrument PN-1809 (1*4) / Two-plates mold / Cold runner No.21064-B
Transparent Medical
Instrument PN-1809 (1*4)
No.21064-B
LKM standard
Standard mold base:P/N: CI25 30.50.80.80

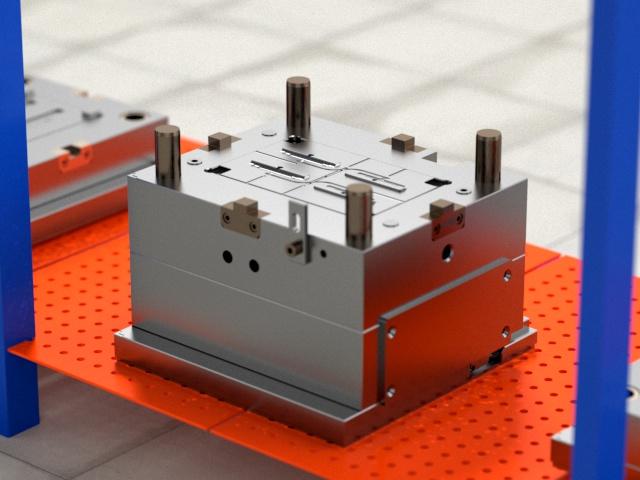

The mold measures 300mm in length, 300mm in width, and 271mm in height. It features
an SPI-A2 surface finish, a side gate design, and uses 1*4/S136 mold steel for the cavity
and core. The mold is a two-plate design, allowing for easy degating and low cost. It
requires a 100T injection molding machine. The mold provides stable molding quality,
uniform mold walls, high glossiness, a good balance of cavity pressure, and a long tool
life for mass production. The molded parts have a uniform thickness without flow marks.
| Part material | Tool life | Injection/runner type: cold runner | ||
| PC | 500k shots | |||

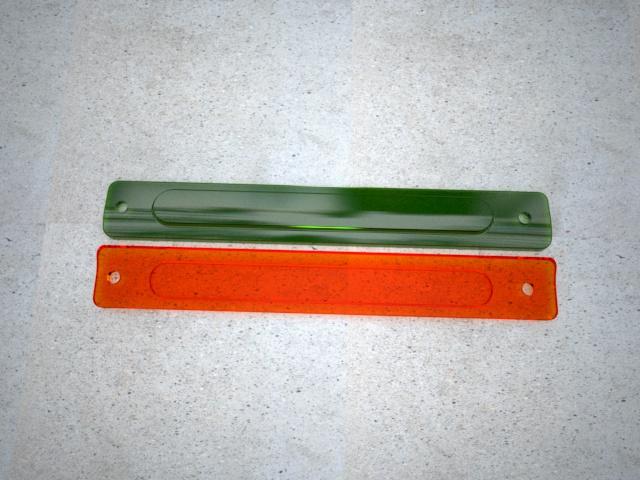

| Part weight/size | |||
| 0.6g / 7.65 X 57.56 X 2.87mm |

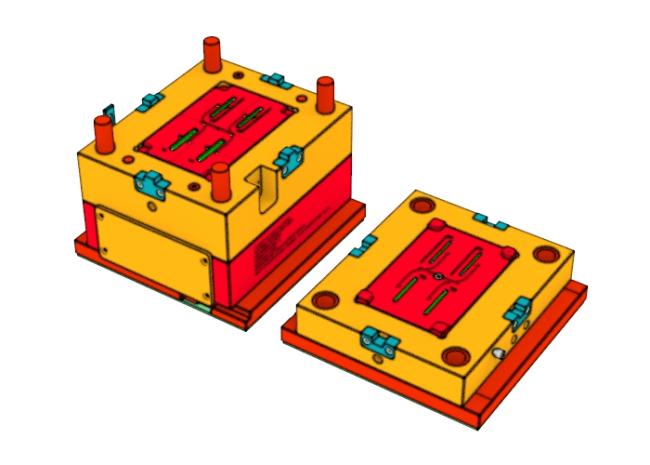

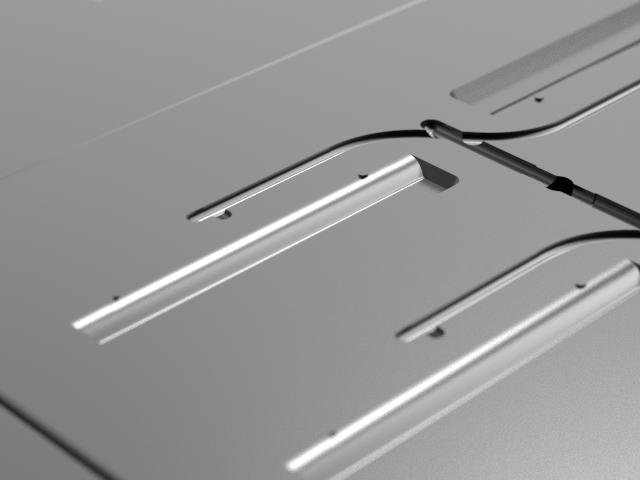

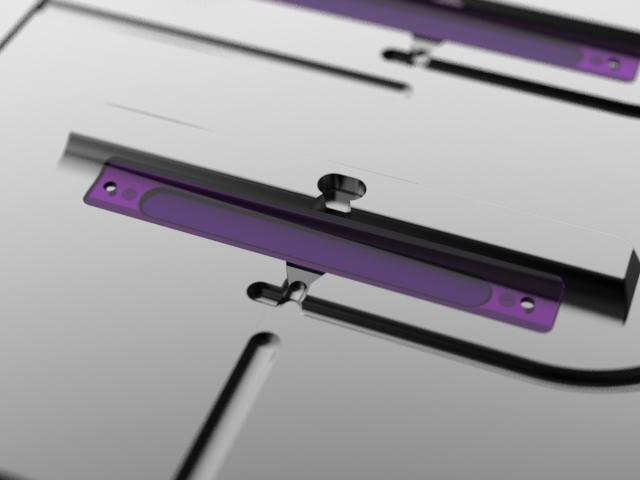

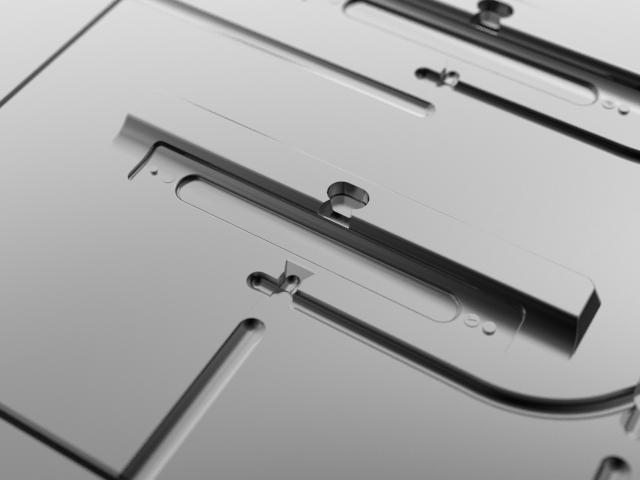

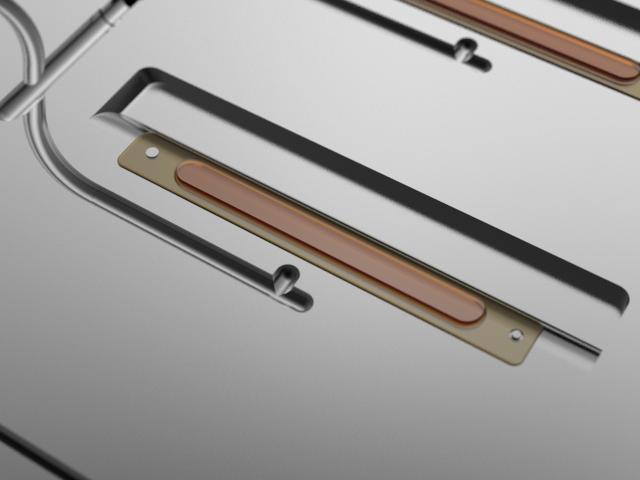

Display diagram
