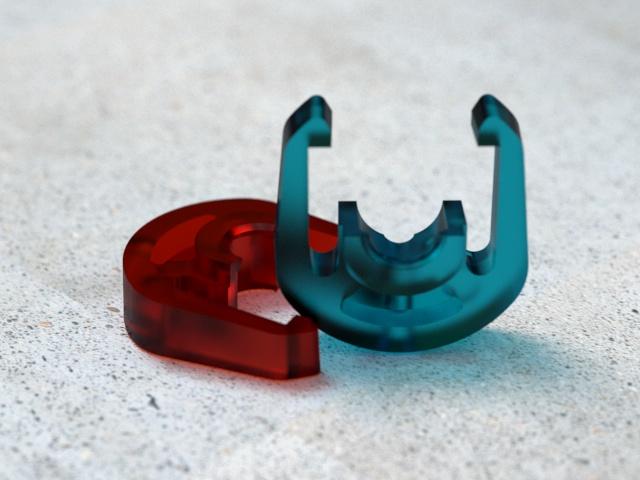

Transparent Medical Instrument PN-1797 (1*4)

No.21065-B

L250   |   W250   |   H251

Net weight: 94 kg        Standard mold base P/N: CI2025.507070
Standard: LKM

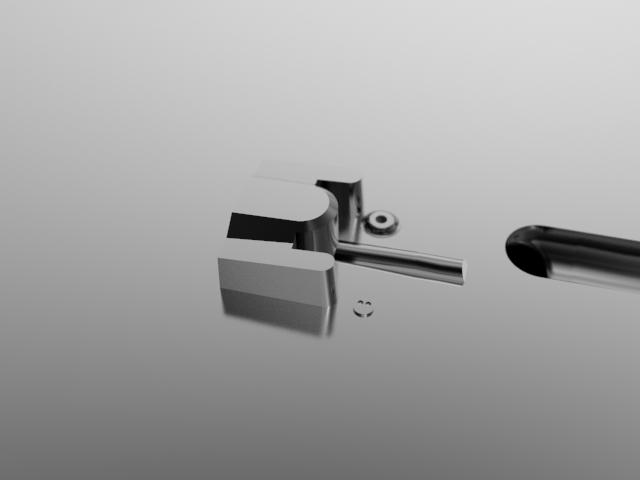

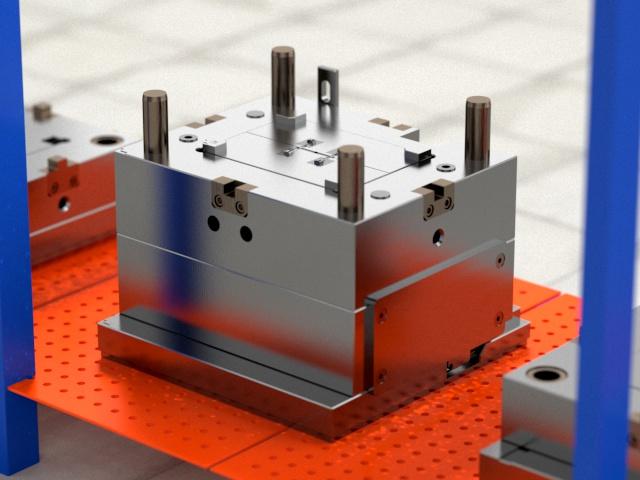

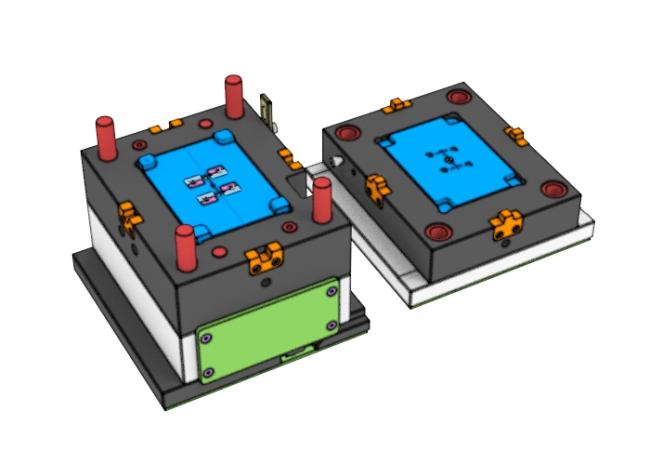

This two-plate mold features a cashew gate for efficient internal filling, resulting in a

short cycle time, rapid filling, minimal gate marks, smooth demolding, and low cost. It is

suitable for long-term, stable mass production, and the molded parts are of high quality

without burrs.

The surface finish is polished to SPI B-2, using hardened 1*4/S136 steel for the cavity and

core. This greatly enhances surface smoothness, wear resistance, and corrosion resistance.

☆ Injection/runner type:cold runner
☆ IMM tonnage:100T

☆ Tool life:500k shots

☆ Part material: PC
☆ Part size: 8.24 X 8.21 X 2.72 mm
☆ Part weight: 0.22g

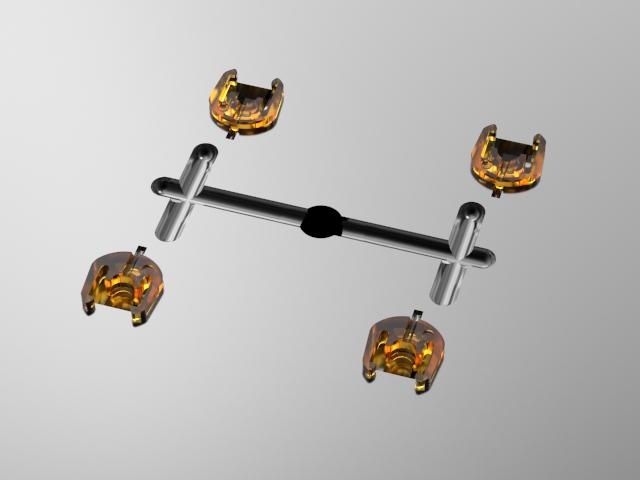

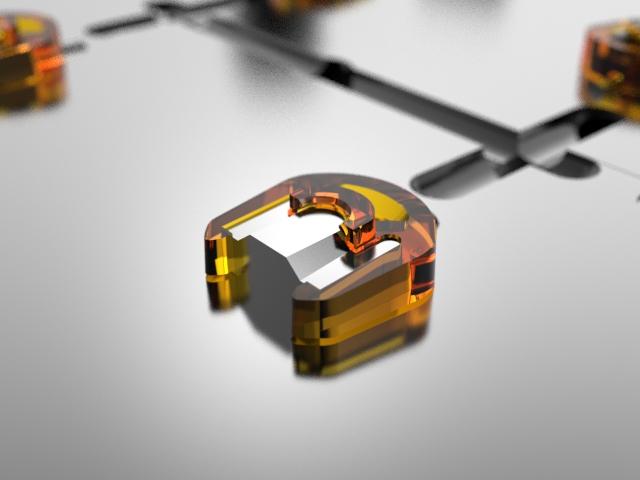

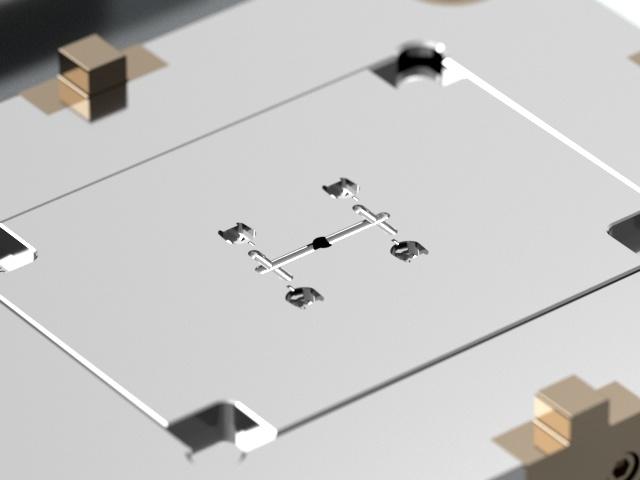

Display diagram
