OEM / ODM ： Precision Injection Molding & Medical Instrument PN-1692 (1*4) No.21067-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Medical Instrument PN-1692 (1*4)
No.21067-B
Standard mold base P/N: CI2025.507070.

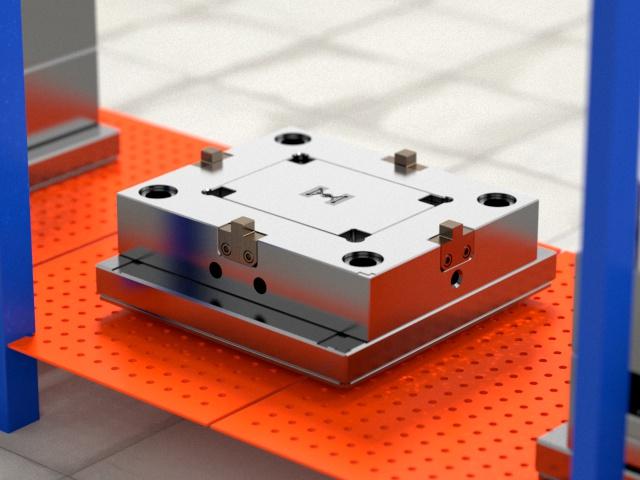

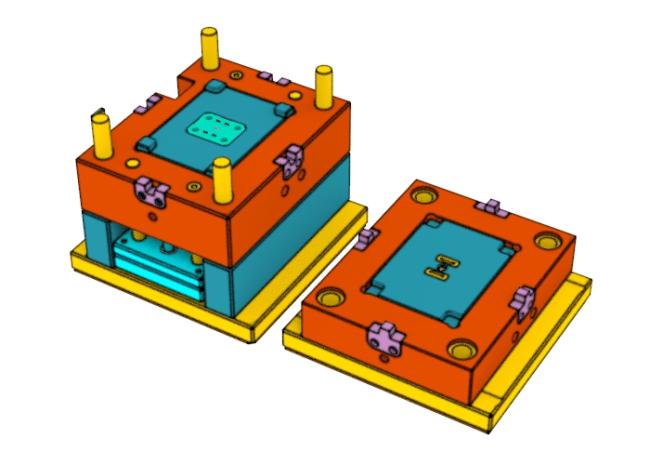

| This product is a two-plate mold with a side gate. It is made of LKM standard material and has a net weight of 94 kg. The injection part is made of PP+40% GF material and uses a cold runner system. The surface finish is polished to SPI B-2 standard. The cavity and core are made of hardened steel with 1*4/S136. |

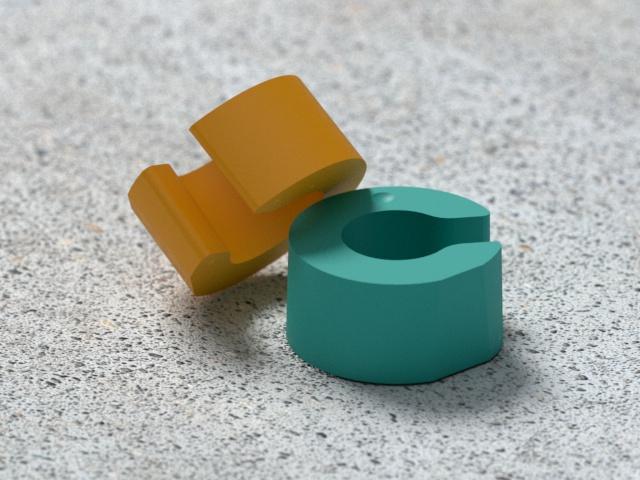

| This product has an injection part weight of 0.01g and a size of 3.34 X 3.47 X 1.72mm. It requires an injection molding machine with a tonnage of 100T. The mold dimensions are Length 250(mm) x Width 250(mm) x Height 251(mm). |
