OEM / ODM ： Precision Injection Molding & Medical Instrument PN-2059 (1*4) No.21068-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Medical Instrument PN-2059 (1*4)
No.21068-B

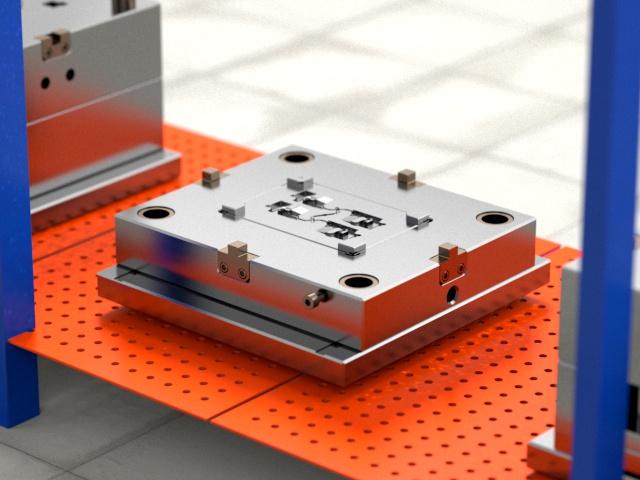

| This product is a two-plate mold featuring a side gate. It boasts a simple structure that is easy to process and degate. The mold base adheres to the standard (CI2530.508080). The mold size measures 300x300x271mm and conforms to the LKM standard. The part material is PC, with a weight of 0.83g and dimensions of 22.20 X 37.08 X 6.75mm. The mold itself weighs 141kg. |
|
The tonnage of the Injection Molding Machine (IMM) for this mold is 100T, and it employs a Cold Runner system for the injection/runner type.
|
| The mold surface is polished to an SPI-A3 finish, ensuring a smooth surface on the molded product without sticking to the cavity wall. The cavity and core are hardened using 1*4/S136 for enhanced hardness, corrosion resistance, and wear resistance. This ensures a tool life of up to 500k shots, meeting the demands of continuous mass production. |

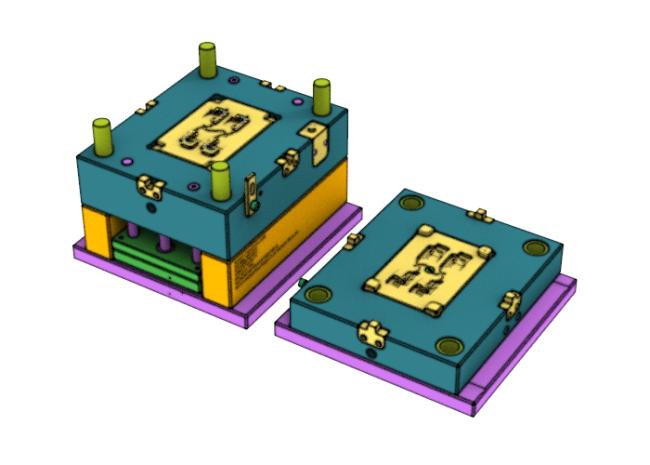

Display diagram
