OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Transparent Medical Instrument PN-2059 (1*4)
No.21068-B
The profile picture has a size of 300x300x271mm and adheres to the LKM standard.

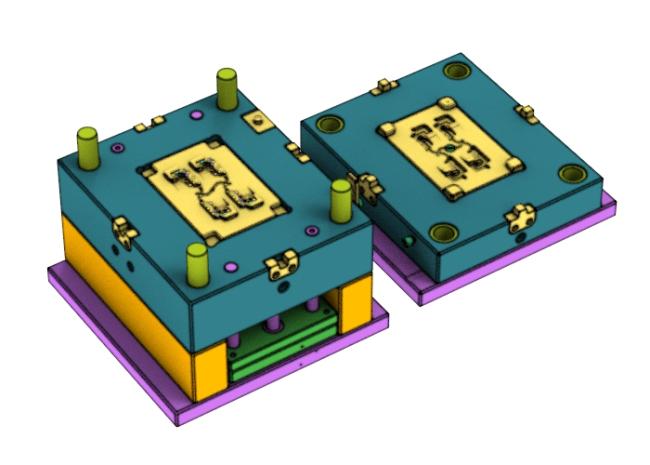

The mold base used is the standard CI2530.508080.

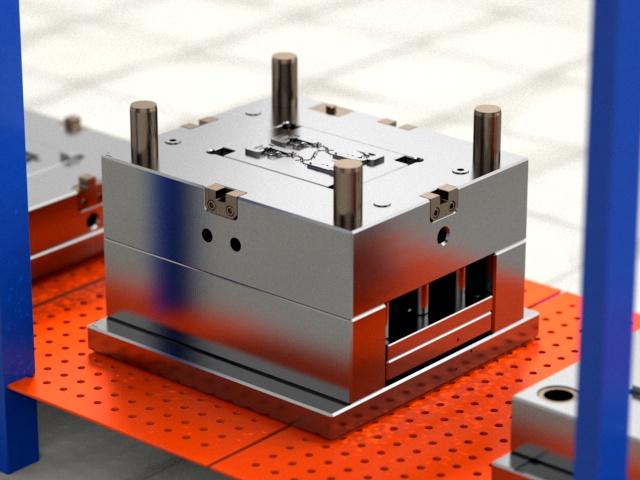

| The two-plate mold with a side gate has a weight of 141 kg and requires a 100T injection molding machine (IMM) tonnage. It is designed for molding PC, which has poor fluidity and requires high-pressure injection. The mold features a two-plate structure and side gate, resulting in a short cycle time, minimal material loss, and easy processing. The cavity and core are made of hardened steel (1*4/S136) and have a surface finish of SPI A3. |

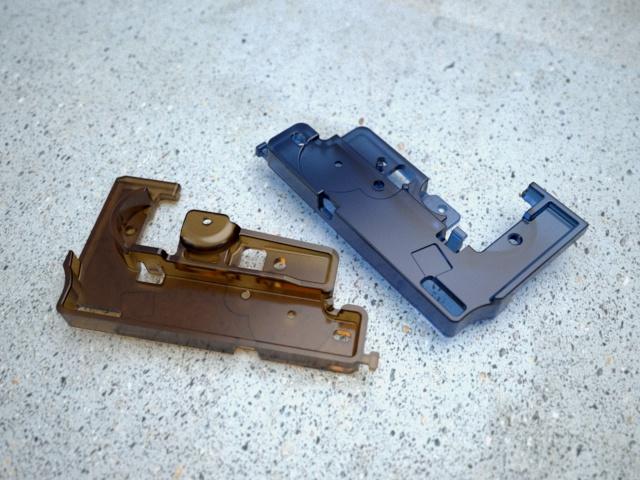

☆ [Part size]: 22.20 X 37.08 X 6.75mm
☆ [Part weight]: 0.83g
Display diagram
