OEM / ODM ： Precision Injection Molding & Medical Instrument PN-1705 (1*2) No.21070-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Medical Instrument PN-1705 (1*2)
No.21070-B

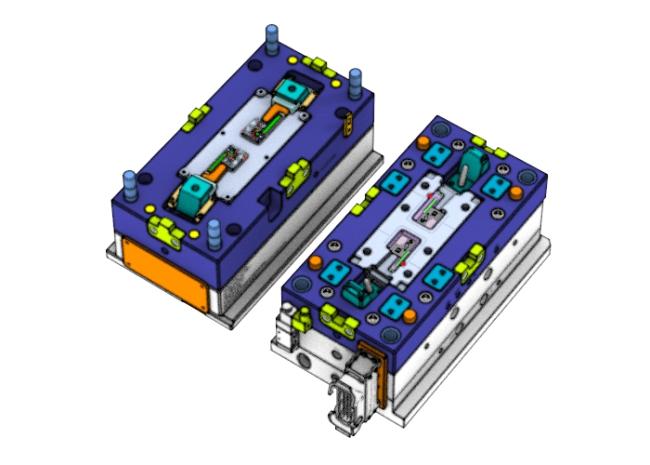

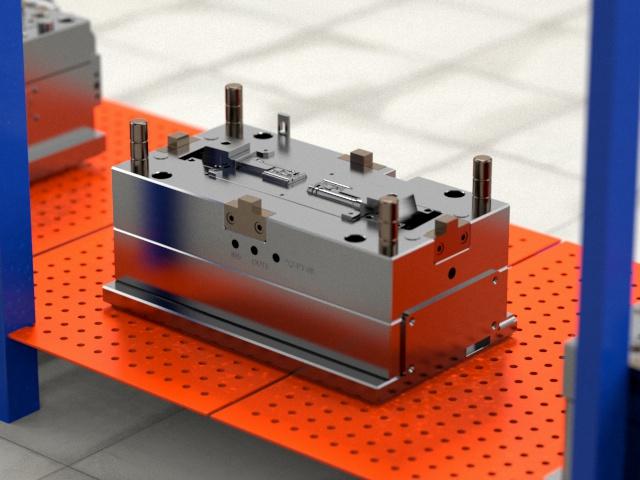

| This product has dimensions of [L] 300mm, [W] 500mm, and [H]421 mm. It utilizes a standard mold base (P/N: CH2550 709080) adhering to the LKM standard, with a net weight of 385kg. The required injection molding ( machineIMM) tonnage for this mold is 130T. It features a direct gate, which offers low pressure loss and easy production. However, manual degating is required due to the large stress near the gate. The mold is designed to minimize gate marks and ensure easy and fast filling. It utilizes a hot runner system for injection/runner type. |
|
The surface finish of this product is as follows: The cavity and core of the mold are made of hardened steel (1*2/S136). |
| Product Introduction Optimization in English: This product is a two-plate mold with a hot runner and direct gate. It offers small cavity pressure loss and good fluidity, making it easy to fill. The surface of the mold is polished to improve smoothness. The cavity and core are hardened to achieve high hardness, anti-corrosion, and anti-wearing performance. The mold design eliminates cold slugs, reducing material costs. It also ensures a short cycle time. The molded parts have clear details without flow marks and gas marks. |

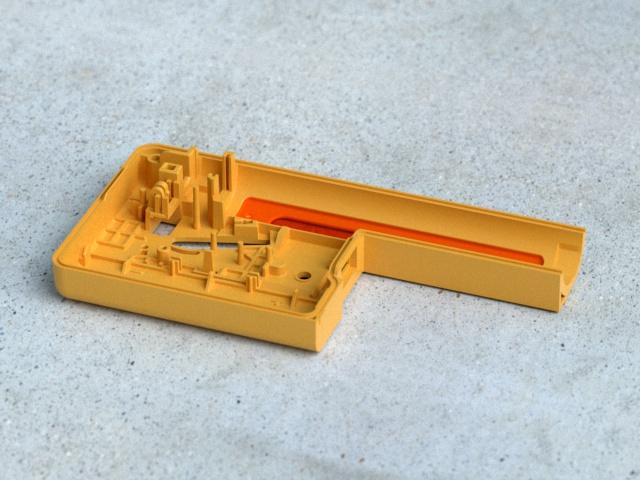

| The injection part of this product is made of PA12+15%GF material. It has a weight of 7.2g and dimensions of 43.75 X 85.49 X 11.73mm. |
Display diagram
