OEM / ODM ： Precision Injection Molding & Medical Instrument PN-2105 (1*4) No.21071-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Medical Instrument PN-2105 (1*4)
No.21071-B

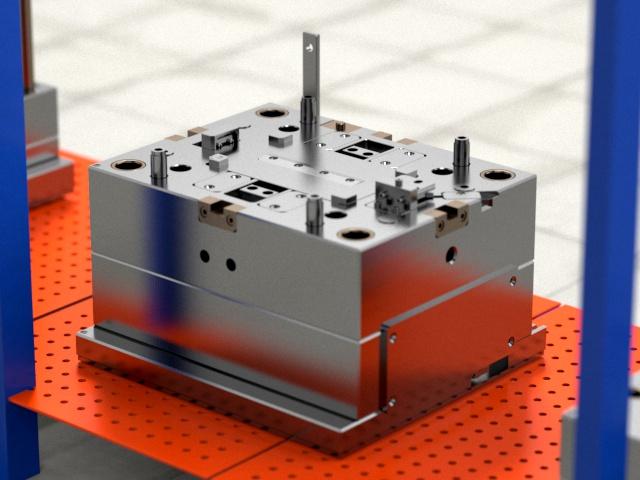

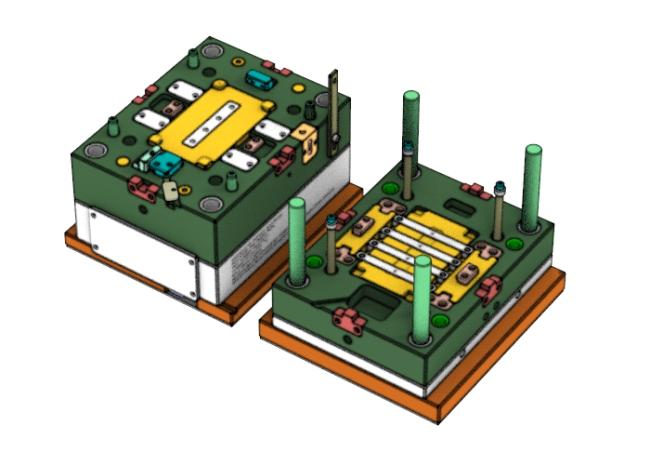

| This product is a three-plate mold with a hot runner, designed for short cycle times and minimal material loss. The mold base is standard (P/N: FCI2735 609080) and adheres to the LKM standard. The mold size is [Length]: 320mm, [Width]: 350mm, [Height]: 326mm and it features 2 slides. The hot runner ensures the melt fills the cavity evenly, resulting in parts with stable quality, low demolding residual stress, and minimal part deformation. The tool life is up to 500k shots, making it suitable for automatic mass production. |

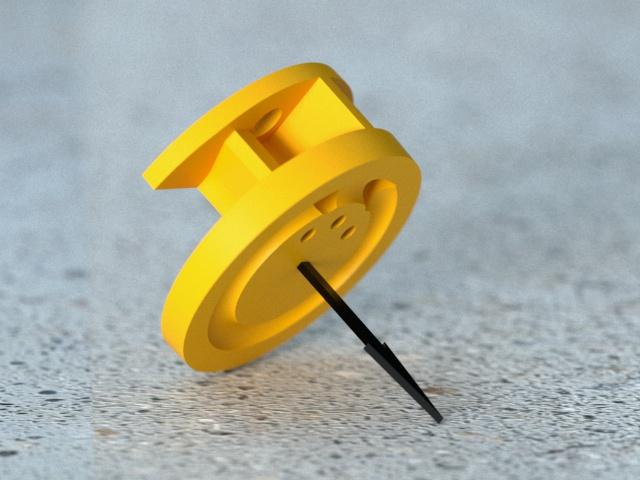

| This product features a pinpoint gate and requires a 100T injection molding machine (IMM) tonnage. The part material is PC, and the surface is polished to SPI B-2 standard. The cavity and core of the mold are hardened with 1*4/S136. The mold has a net weight of 225 kg, while the part weight is 0.12g. The part size measures 9.24 X 9.24 X 4.00mm. |
Display diagram
