OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2105 (1*4) No.21071-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

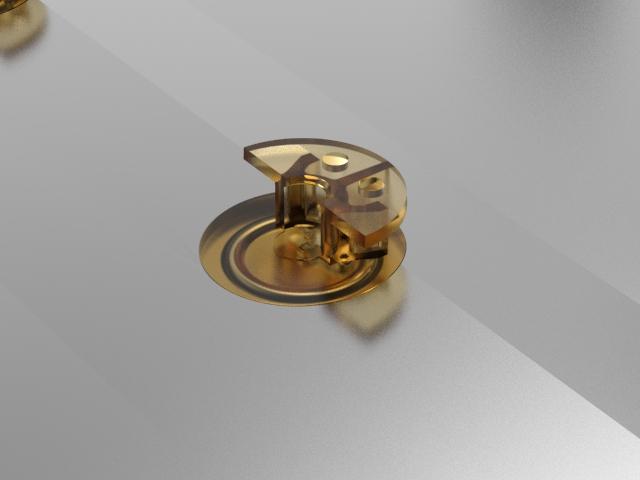

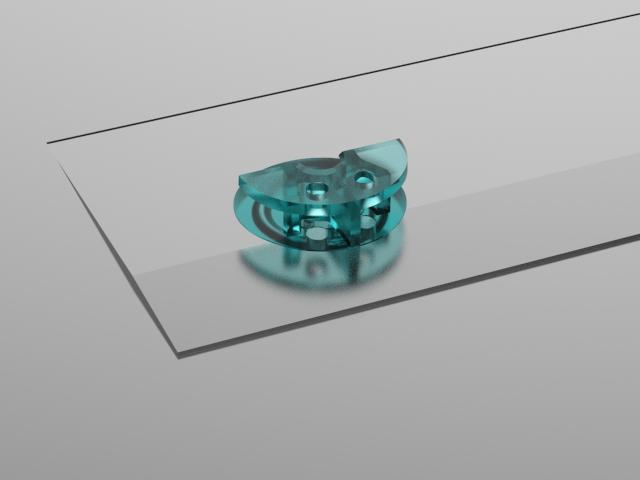

Transparent Medical Instrument PN-2105 (1*4)
No.21071-B
|

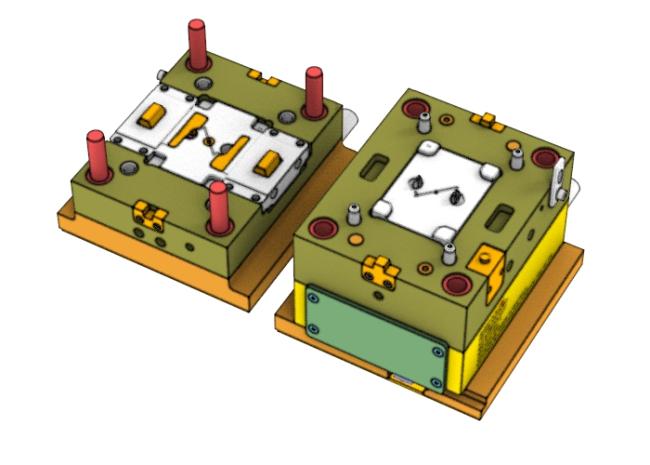

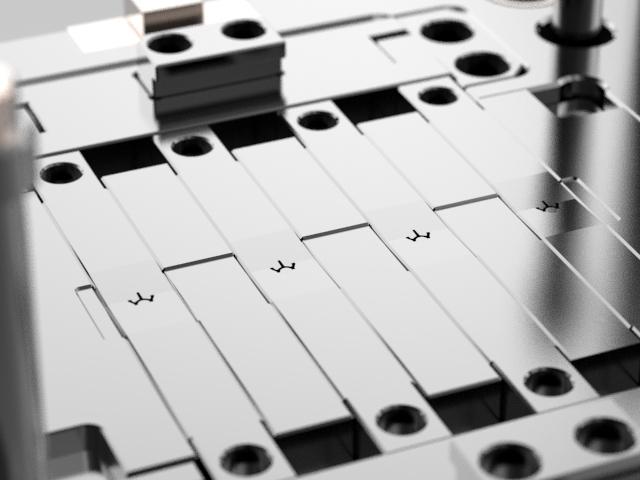

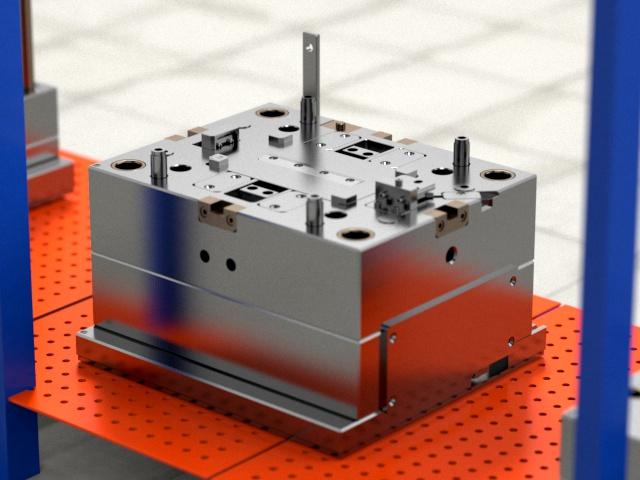

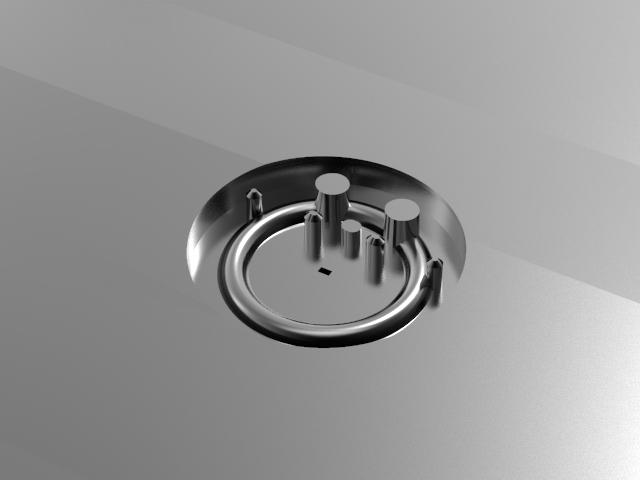

This product utilizes standard a mold base (P/N: FCI2735 080609) adhering to the LKM standard. The mold has dimensions of [L320mm] [W350mm] [H326mm]. It features a pin point gate and is designed for injection with PC material. The surface finish is polished to SPI B-2 standard. The mold has 2 slides and the cavity and core are hardened with 1*4/S136 steel. It is a three-plates mold with a tool life of 500k shots.
|
| This mold, developed by Chitwing, features two slides and a hot runner system. The pin point gate and uniform pressure ensure that the melt fills the cavity evenly, resulting in parts with consistent quality and thickness, making it suitable for automatic mass production. The mold surface is smooth, minimizing demolding stress and preventing deformation of the molded parts. | |||||
| Mold weight | IMM Tonnage | Part weight | Part size | ||
| 225kg | 100T | 0.12g | 9.24x9.24x4.00mm | ||

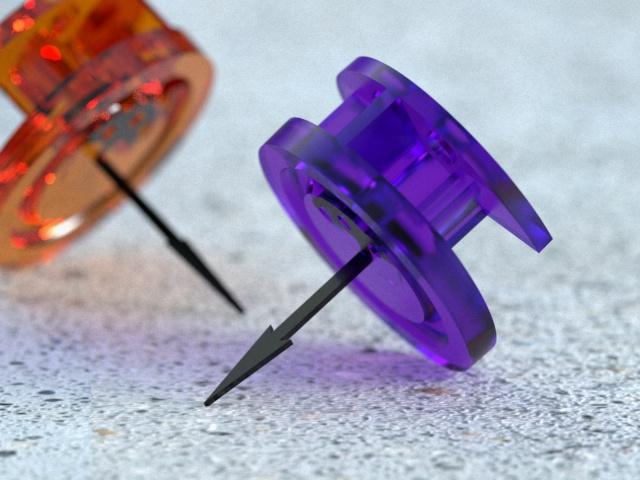

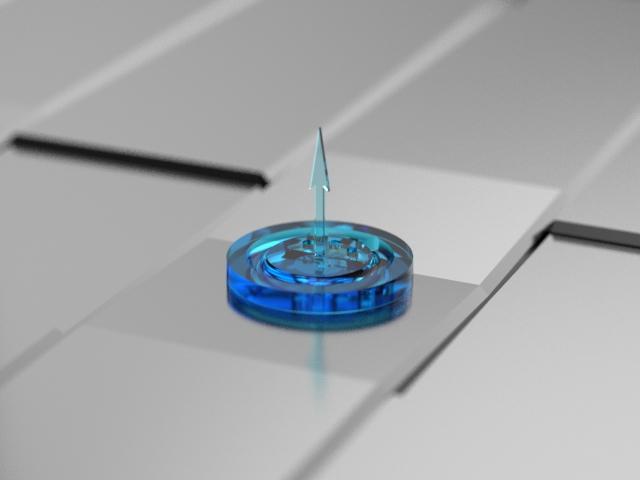

Display diagram
