OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Transparent Instrument PN-1822 (1*2)
No.21073-B

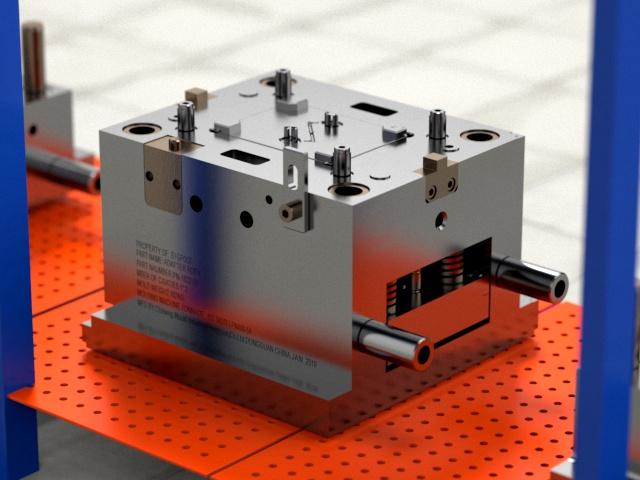

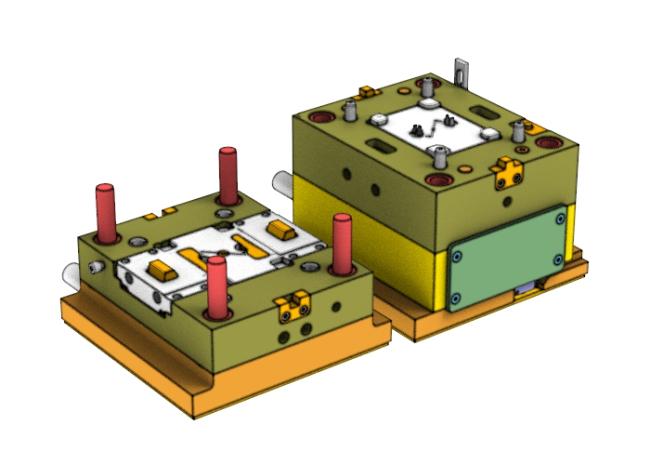

| This product utilizes standard a mold base (CI2025.507070) adhering to the LKM standard. The mold has dimensions of [L] 250mm, [W] 250mm, and [H] 266mm. It features 1 slide and has a net weight of 99 kg. |

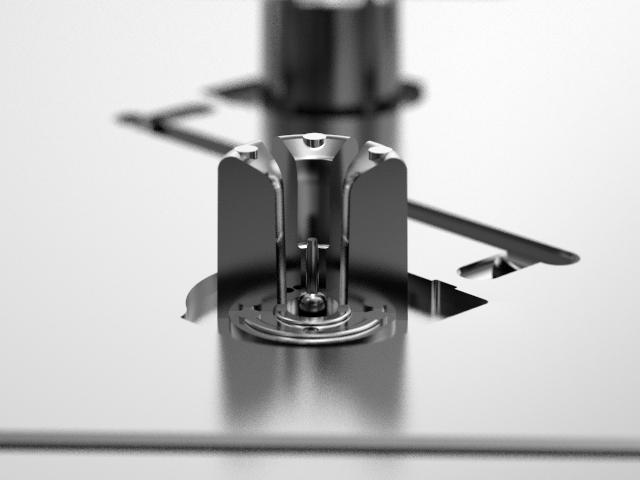

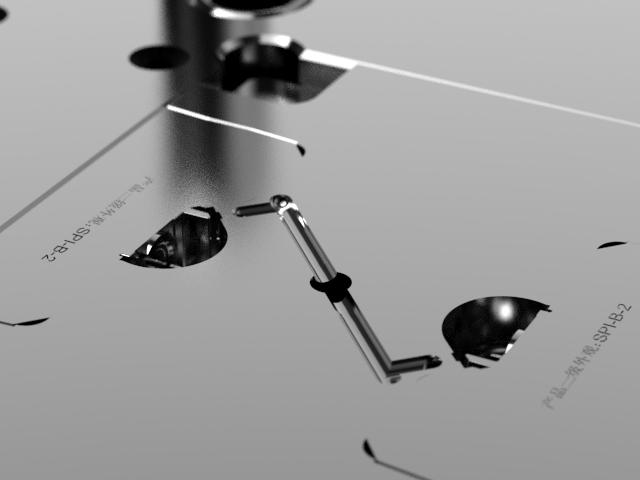

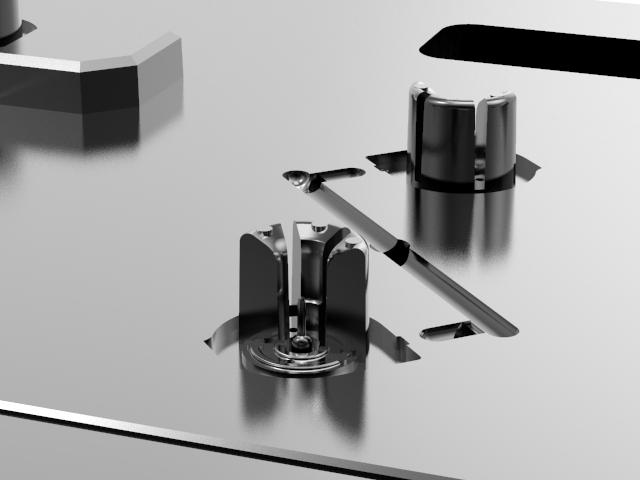

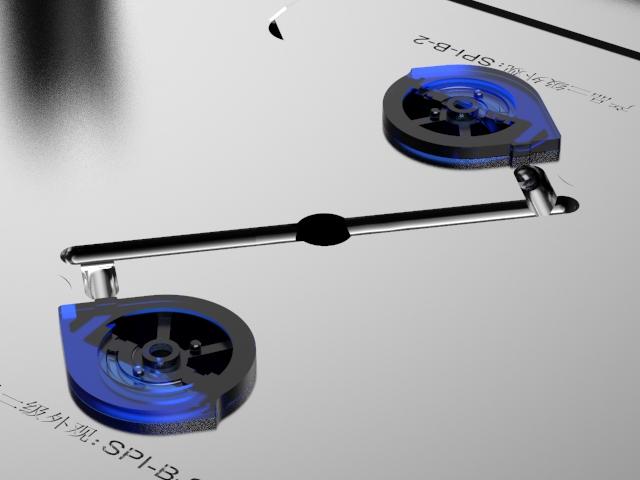

| This product is a two-plate mold with a cashew gate and utilizes a cold runner system. It requires a 100T injection molding machine (IMM) tonnage. The cavity and core of the mold are made of hardened steel (1*2/S136). The surface finish of the mold is as follows: 1.Partial surfaces are polished to SPI B-2 standard. 2.Partial surfaces are polished with MT11003 (RMS 60). 3.Partial surfaces are polished to SPI B-1 standard. 4.Partial surfaces are polished to SPI A-2 standard |

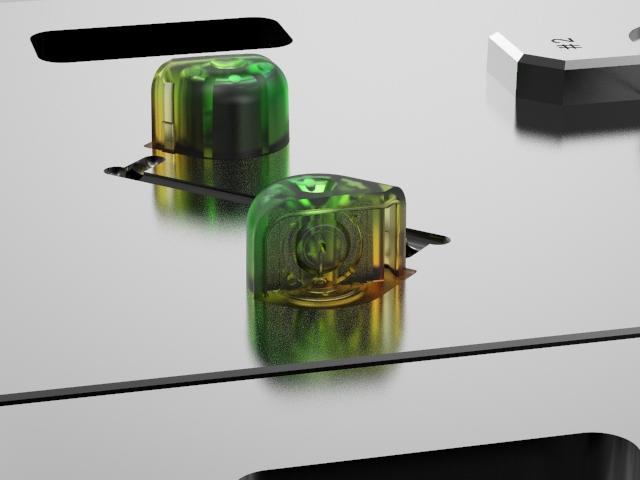

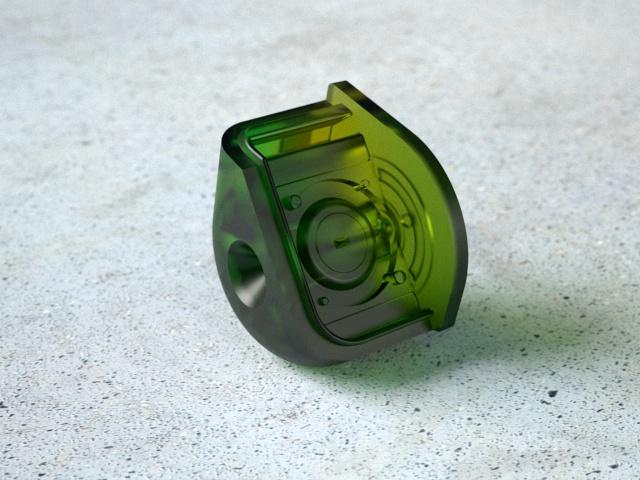

| The injection part is product this of made of PC material, with a net weight of 1.36g. The part size measures 15.87x19.02x11.93mm. The tool life of the mold is rated for 500k shots. |
Display diagram
