OEM / ODM ： Precision Injection Molding & Clamshell Phone Front Shell (1*1) No.21871-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Clamshell Phone Front Shell (1*1)
No.21871-B
|

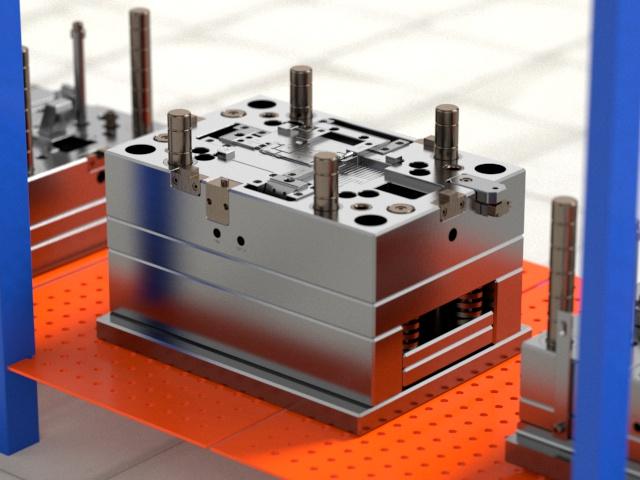

This is a three-plate mold manufactured by LKM. The mold base part number is DDI3045 709090 and the overall size is 350x450x401mm. The mold is designed for a minimum tool life of 500,000 shots. It features a side pinpoint gate that turns into a side gate to fill the cavity. The mold weighs approximately 390kg.
|
|
The cavity and core have undergone hardening treatment (1*2/S136) for increased wear resistance. The mold utilizes a cold runner injection/runner system. It is rated for an injection molding machine tonnage of 110 tons.
|
|
The mold is designed to produce parts measuring 55.55x11.24x108.75mm and weighing 5 grams per part. The entire mold surface, including the cavity and core, has undergone A surface EDM finishing with VDI24# roughness. This results in a smoother mold surface, molded parts with less flow marks and gas marks.
|

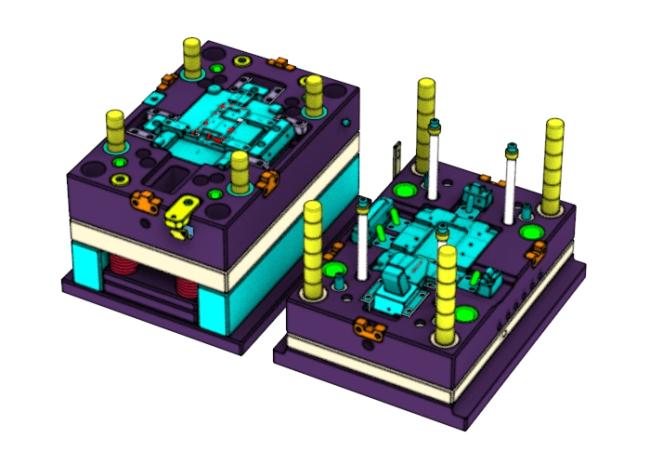

Display diagram
