OEM / ODM ： Precision Injection Molding & Transparent Clamshell Phone Back Cover (1*1) No.21872-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Transparent Clamshell Phone Back Cover (1*1)
No.21872-B

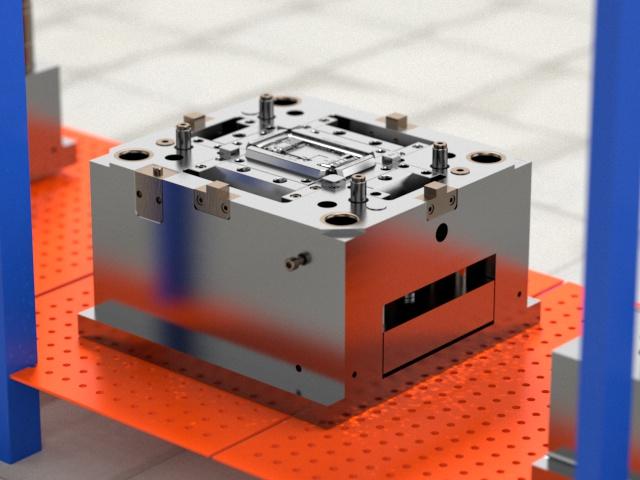

| This three-plates mold, manufactured according to the LKM mold standard with the mold base P/N FCI3035 609080, offers exceptional performance and versatility. With a compact size of 350350331mm and a net weight of 254kg, it is suitable for a wide range of applications. |

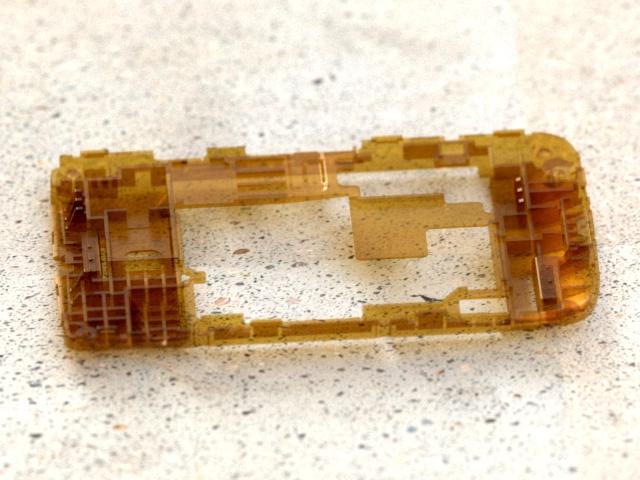

| The mold features a pin point gate for precise injection control and is constructed with hardened steel (1*1/S136) for durability and high-quality molded parts. With a recommended IMM tonnage of 110T, this mold ensures exceptional precision in producing parts. Additionally, it undergoes A surface EDM with VDI27# for superior surface finish. Equipped with 4 slides and 1 lifter, it enables efficient production of complex part designs. The injection part, made from PC material, weighs 8.3g and has dimensions of 53.62X8.09X101.85mm. |

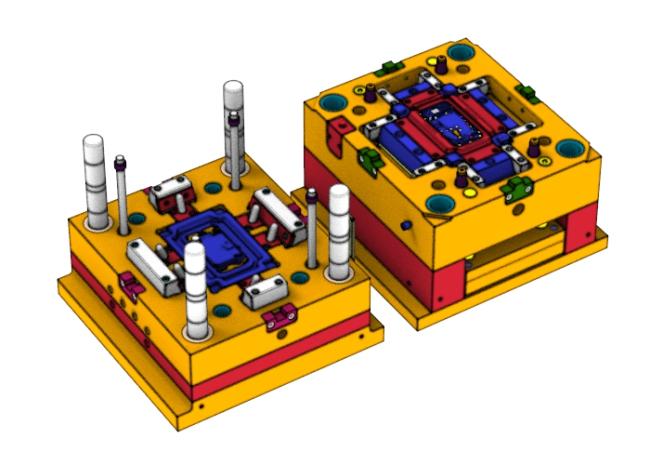

Display diagram
