OEM / ODM ： Cold Runner Injection Molding & Glasses Inner Housing 1*1 No 23057-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Glasses Inner Housing (1*1)
No.23057-B

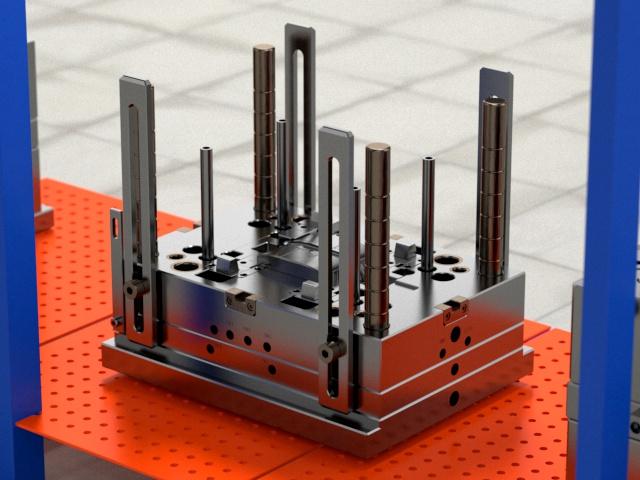

| The mold is a three-plates mold with a size of 350mm (L) x 450mm (W) x 446mm (H). It has a net weight of 425kg and is built on a DAI3045 70120100 mold base. The mold follows the LKM standard and features 5 slides and 7 lifters. It is designed for an injection molding machine with a tonnage of 140T. The tool life of the mold is expected to be 500,000 shots. |

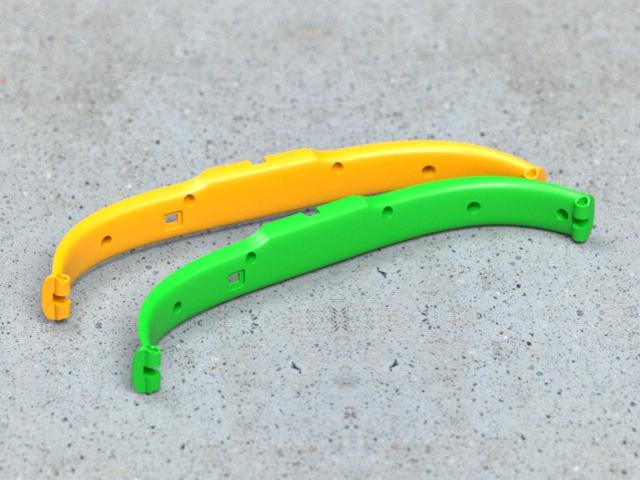

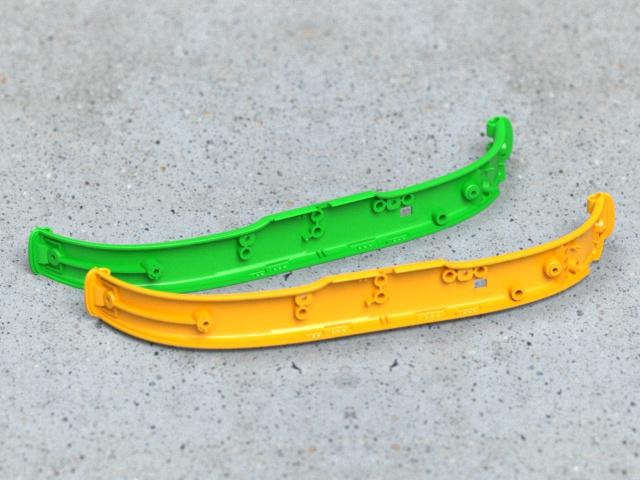

| The gate type used is a sub gate, and the surface finish is achieved through a VDI24 etch on the A surface. The cavity and core of the mold are made of hardened steel (1*1/S136). The injection system uses a cold runner. The injection part is made of PC material, weighs 4.6g, and has dimensions of 17.00mm x 147.90mm x 33.24mm. |

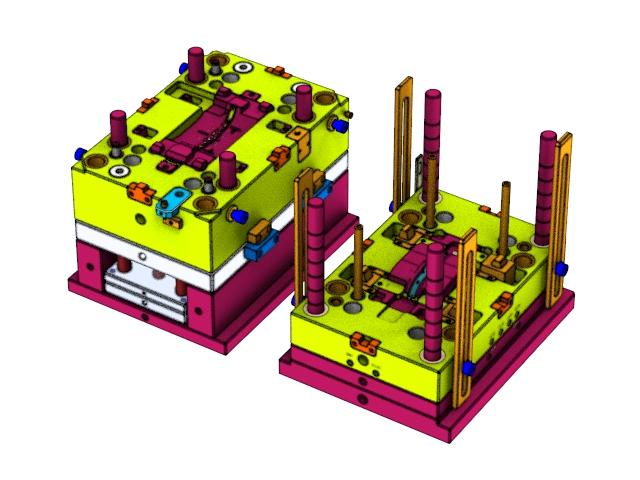

Display diagram
