OEM / ODM ： Cold Runner Injection Molding & Bracket In Glasses 1*2 No.23058-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Bracket in glasses (1*2)
No.23058-B

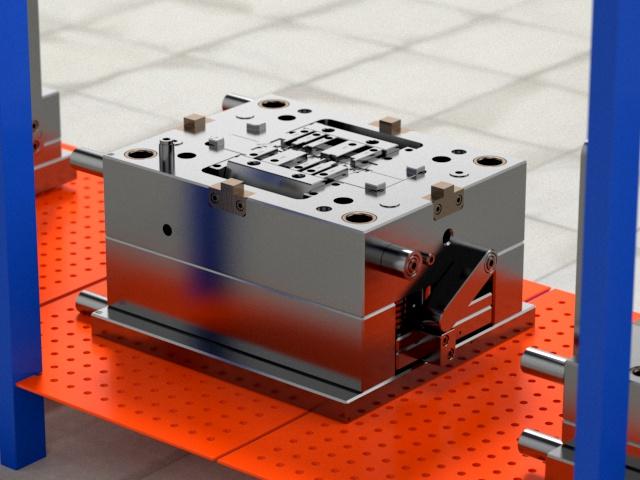

| This mold embodies sophistication as a three-plates mold, boasting a mold base of FCI2735 609080. Adhering to the esteemed LKM standard, it showcases dimensions of L 320mm x W 350mm x H 316mm. With a weight of 222kg, it demands an impressive IMM tonnage of 180T. Notably, this mold showcases 5 slides and 2 lifters, ensuring effortless demolding. Its ingenious design comprises a core, cavity, and discharge plate, accompanied by a flexible gate and self-degating mechanism, resulting in flawlessly molded parts devoid of conspicuous gate marks. |

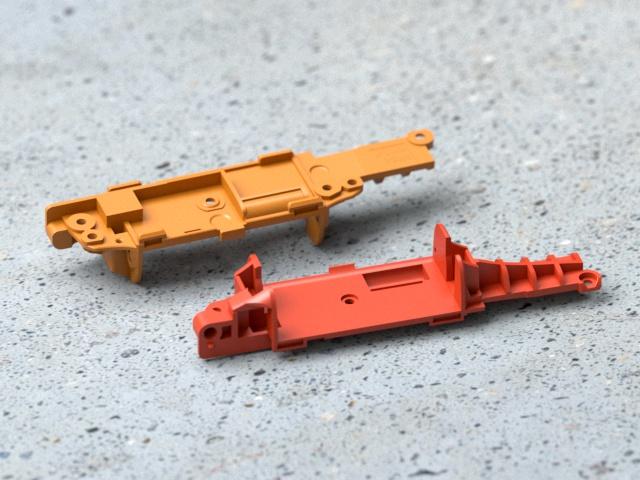

| Employing a pin point gate, this mold offers unparalleled flexibility in gate positioning. The melt utilized exhibits exceptional fluidity and withstands high temperatures, culminating in impeccably molded parts boasting remarkable clarity and a lustrous finish. The injection part material of choice is PC, while the injection part itself measures L16.2mm x W66.25mm x H11.5mm. With a weight of a mere 1.5g, this injection part exemplifies precision and finesse. |
|
The chosen injection/runner type for this mold is the esteemed Cold Runner system. To enhance its durability and resistance to wear and corrosion, the cavity and core are meticulously hardened with 1*2/S136 steel, boasting superior hardness and exceptional anti-wearing and anti-corrosion properties.
In terms of surface finish, meticulous attention has been given to ensure optimal results. One surface of the mold undergoes a meticulous VDI24 etching process, while the other surface is meticulously polished using 800# sandpaper. These meticulous surface treatments elevate the mold's surface glossiness, ultimately leading to impeccably smooth and flawless parts.
|

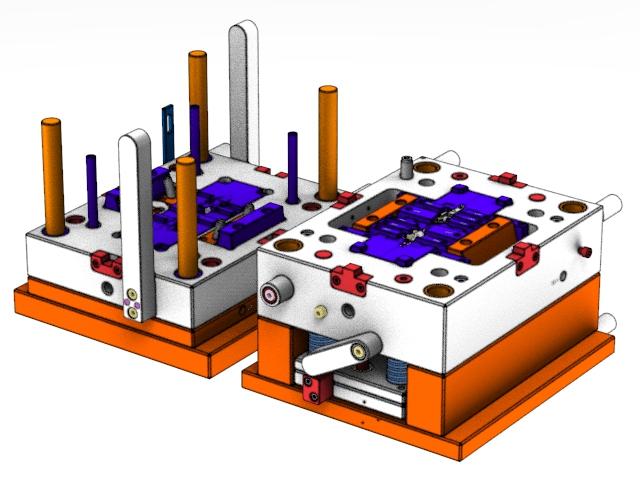

Display diagram
