OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Middle Bracket 1*2 No.23058-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Transparent glasses middle bracket (1*2)
No.23058-B
|

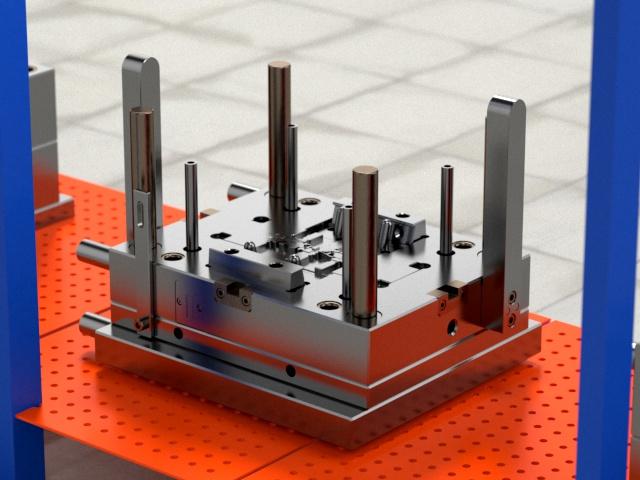

This mold is a three-plates mold with a mold base of FCI2735 609080. It follows the LKM standard and has a size of L 320mm X W 350mm X H 316mm. The mold features 5 slides and 2 lifters, contributing to its functionality. The net weight of the mold is 222kg.
The required IMM tonnage for this mold is 180T, and it utilizes a Cold Runner injection/runner type. The mold is designed to provide a smooth surface and precise details for the molded parts. This is achieved through a surface finish that includes VDI24 etching and polishing with 800# sandpaper. These treatments improve the mold surface glossiness and reduce pits, ensuring that the molded parts have a smooth surface and do not stick to the mold.
|
|
The cavity steel is hardened with 1*2/S136, which enhances the mold's hardness, anti-wearing, and anti-corrosion performance. It also extends the tool life of the mold, allowing for up to 500k shots.
The mold steel used is also hardened with 1*2/S136, further contributing to its durability and performance.
|
|

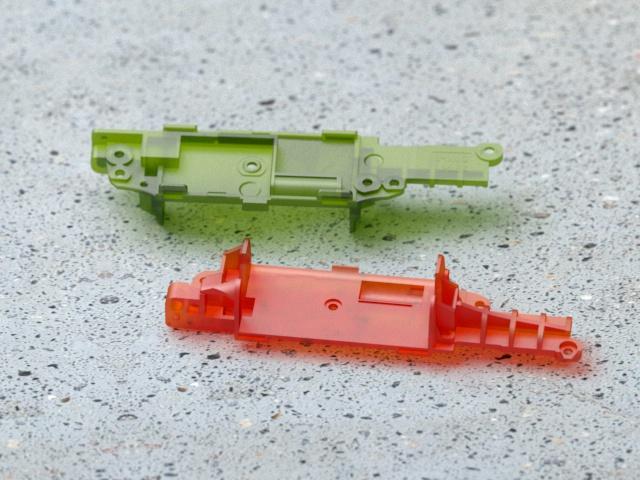

The injection part material for this mold is PC, and the weight of the injection part is 1.5g. The size of the injection part is 16.20 X 66.25 X 11.50mm.
|

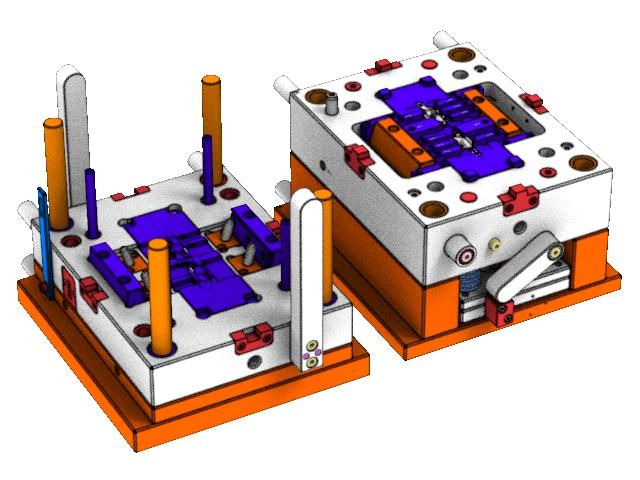

Display diagram
