OEM / ODM ： Cold Runner Injection Molding & Crystal Right Belt 1*2 No 23187-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Crystal Right Belt (1*2)
No.23187-B

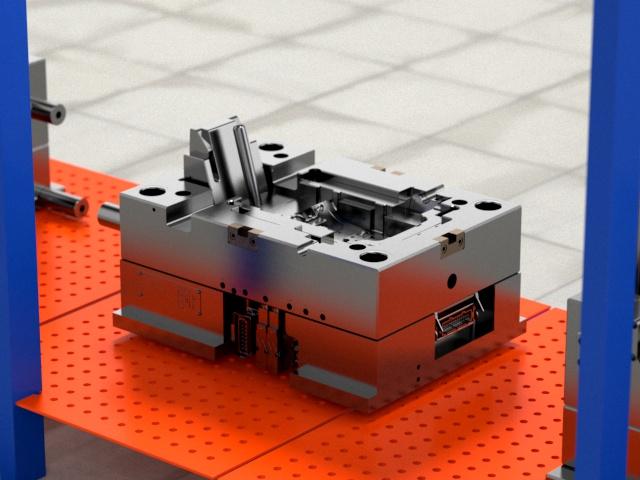

| Presenting a meticulously designed mold featuring a cold runner system and a cashew gate. With dimensions measuring 550mm X 650mm X 551mm, this mold showcases exceptional craftsmanship. |
| The surfaces are treated with MT11010 etching, while the cavity and core are hardened using 1*2/S136 steel, ensuring durability and longevity. Adhering to the esteemed LKM standard, this mold incorporates 1 slide and 5 lifters, facilitating smooth and precise molding actions. The surface finish is further enhanced with MT11010 etching on select surfaces, resulting in a hardness exceeding 600HV. With a net weight of 1188kg, this mold requires an impressive IMM tonnage of 280T. |

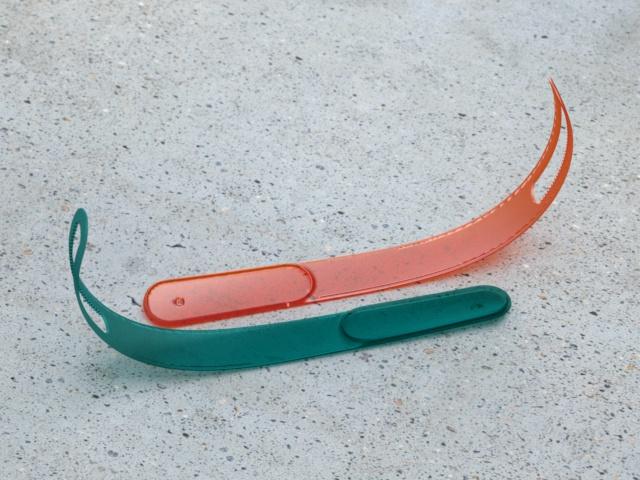

| The molded part itself weighs 25.5g and boasts dimensions of 31mm X 344mm X 6.35mm. |
Display diagram
