OEM / ODM ： Double Injection Molding & Smart Watch Lower Housing No 23309 And 23310-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Smart Watch
Lower Housing (1*4)
No.23309 & 23310-B
|

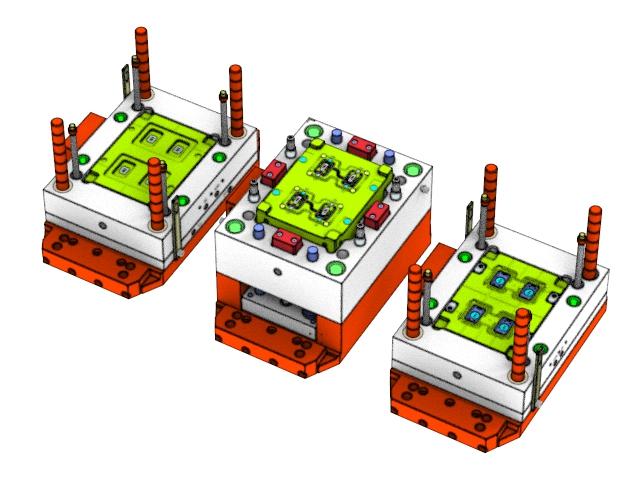

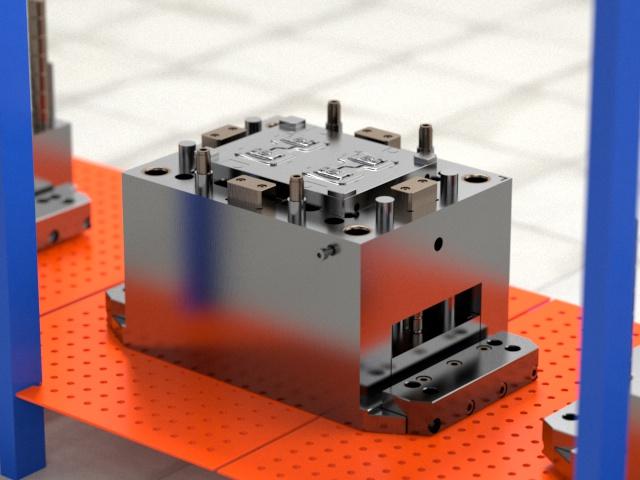

The mold base P/N is FCI2735 6011080. It is a three-plates mold with a mold size of 270465356mm. The gate type used is a pin point gate combined with a submarine gate. The mold has a life expectancy of 500k shots and weighs 357kg. It is designed to be used with an injection molding machine of 200T.
|
|
The part produced by this mold is made of PA (transparent) and PA + 60% GF (black), with a weight of 2.2g and dimensions of 26.42 X 42.24 X 5.79mm. The surface finish of the mold includes an A surface EDM with SPI-A2, an A surface EDM with SPI-B2, and an A surface EDM with VDI24# (Makino). The mold is built according to the LKM standard, and the cavity and core are made of hardened steel (1*4/S136). The injection and runner type used is a cold runner.
|
|
In addition, this mold features double-shot molding, allowing for the production of parts with multiple colors or materials.
|
Display diagram
