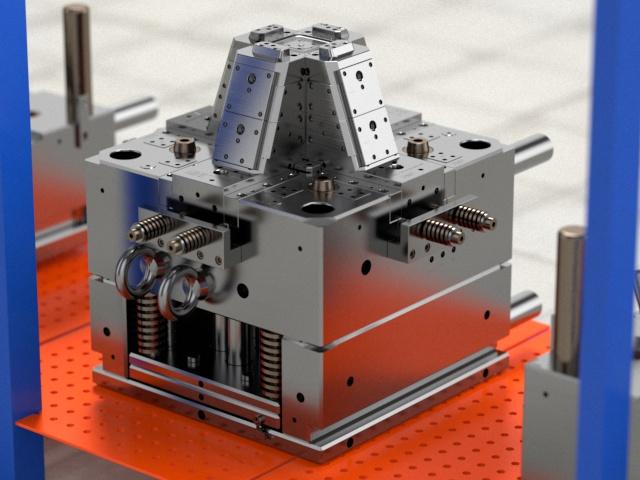

OEM / ODM ： Single Cavity Injection Mold & Middle housing (1*1) No.23394-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

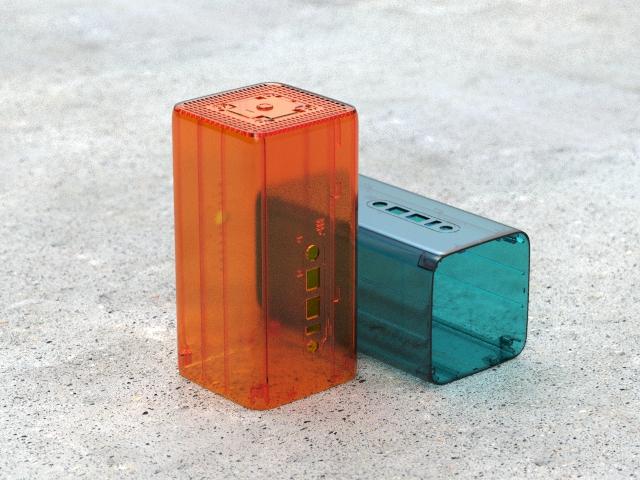

Middle housing (1*1)
No.23394-B
| Chitwing | Standard mold base P/N: CI6060 | Gate | Net weight | ||
| Cold runner | Length | Width | Height |
Large pin point gate |
2062kg |
| 600 | 600 | 776 | |||
|
|
|
Type: Two-plates mold
Standard: LKM
IMM tonnage: 450T
| The mold is developed (designed and manufactured) by Chitwing with advanced processing technology. A surface polished to 800# sandpaper and textured. The large A surface EDM with VDI27# (Makino) and other large surfaces EDM with VDI30# (Makino). Harden the cavity and core with 1*1/S136 to have hardness ≥ 50HRC; the mold surface is free of defects. The mold features smooth ejection, service life up to 500k shots, and excellent cost performance | ||||||||

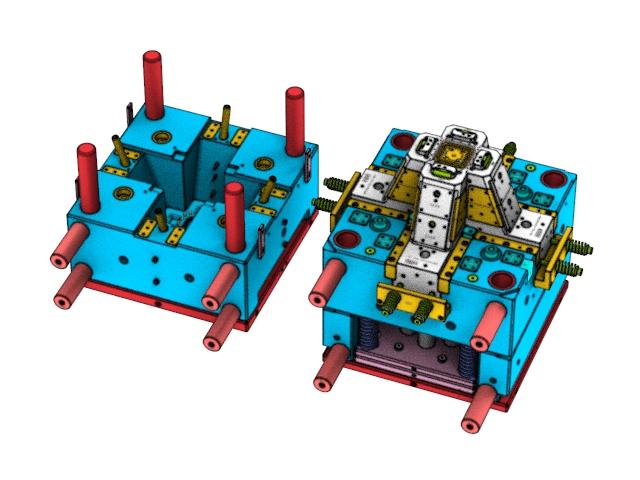

Display diagram
