Transparent Medical Instrument PN-1691 (1*4) Two-Plates Mold Cold Runner No.21063-C
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Transparent Medical
Instrument PN-1691 (1*4)
No.21063-C
Description:
| The Two-plates mold Cold runner is a widely used type of injection mold in the manufacturing industry. It consists of two main plates that shape the mold cavity and core. The cold runner system is the method used to deliver the molten material to the mold cavity without the use of a heated runner. This type of mold is often employed for simple part geometries and can contribute to reducing material waste. |
Application:
medical instruments
home electronics
Daily necessities
digital product
Features:

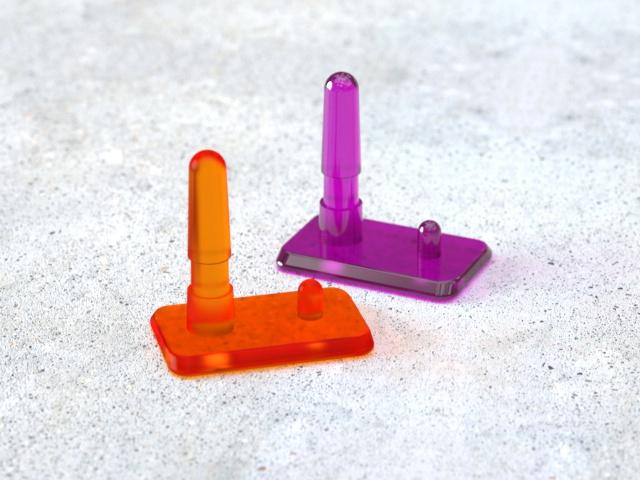

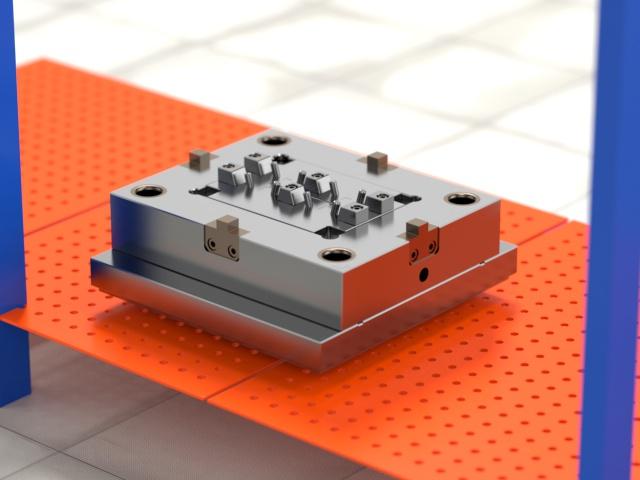

| The mold is built in accordance with LKM standards and features a standard mold base with part number CI2025.508070. Its dimensions are 250mm in length, 250mm in width, and 261mm in height. This mold incorporates 2 slides and weighs 93kg. It is designed with a side gate structure. The injection molding process utilizes a 100T machine and produces parts made of PC+PET material with a net weight of only 0.11g. The dimensions of the part are 10.22 x 6.70 x 10.20mm. The mold has a tool life of 500,000 shots and employs a cold runner injection type. |
Advantage
| Our expertise lies in crafting two-plates molds equipped with a cold runner system. These molds are meticulously designed to streamline the cost-effective mass production of plastic parts. The two-plates design facilitates effortless mold separation, and the cold runner system minimizes material waste and boosts production efficiency. Our precision-engineered molds adhere to the most stringent industry standards, guaranteeing dependable performance and longevity. |
Display diagram
