OEM / ODM : Cold Runner Injection Molding & Transparent Medical Instrument Cover (1*2) No.23670

Price Negotiable
Price: Negotiable
MOQ: 1set
Delivery Time: 30 day(s)
Brand: Chitwing
Product Description

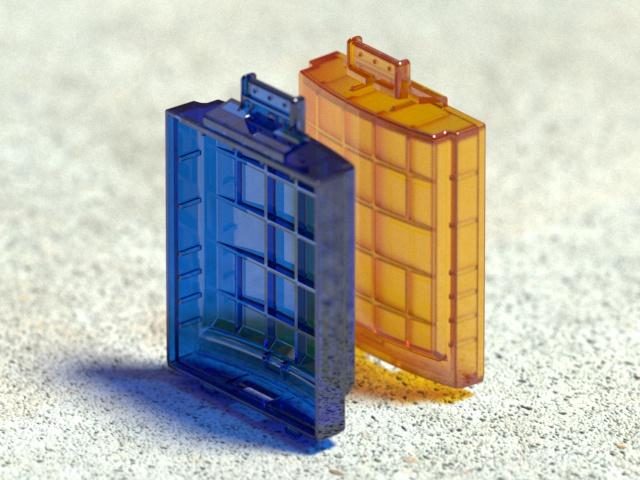

Transparent Medical

Instrument Cover (1*2)

No.23670



  Standard mold base P/N:

  CI2730.608070

  Size
  (long) 320mm   (Width) 300mm   (High) 261mm





  Type:   Two-plates mold
This is a two-plates mold designed with one slide and one lifter to meet customer's cost-effective requirements. A surface is polished to SPI A2, and partial surfaces EDM with MT11030/MT11010/VDI24#. Harden the cavity and core with 1*2/S136 to have high hardness, anti-corrosion and anti-wearing performance, suitable for mass production. The molded parts have smooth surface and clear details without roughness, full and uniform.
  Gate:   Sub gate
  Part material:   ENH2900
  Tool life:   500K shots
  Standard   LKM
  Injection type   Cold runner
  Runner type   Cold runner



☆ 1 slide and 1 lifter





The mold net weight is 156 kg, fit 100T machine, the part size is 53.7 * 36 * 11 mm, and the

part weight is about 4.9g.

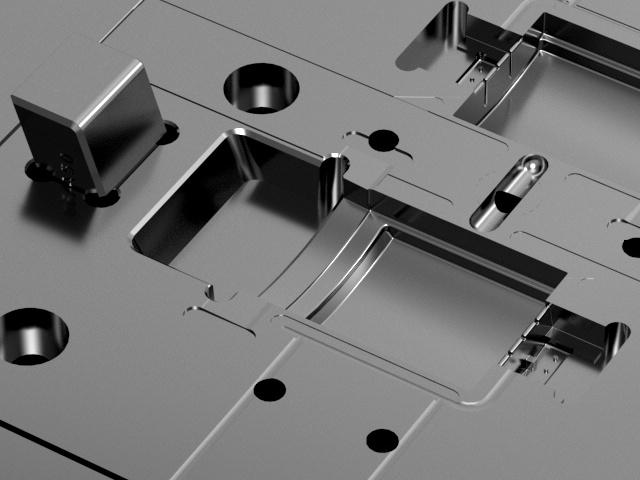

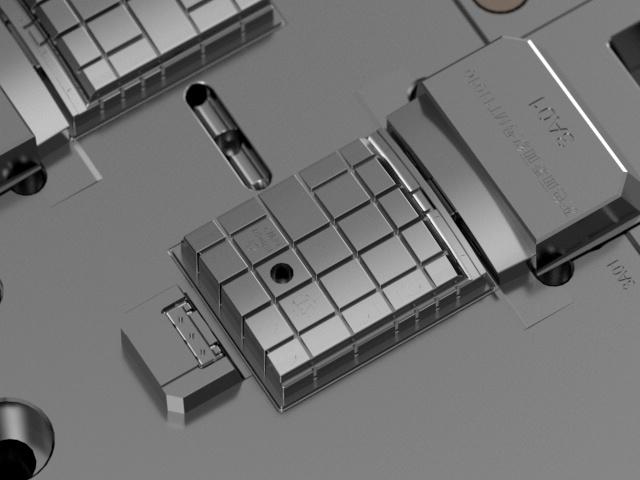

Display diagram
