OEM / ODM ： Cold Runner Injection Molding & Transparent Medical Instrument Bottom Shell (1*2) No.23672
Transparent Medical
Instrument Bottom Cover (1*2)
No.23672
| Part information | ||||
| Size: 300x300x314.5 (L X W X H) | ||||
| Standard mold base P/N FCI2530.609080 LKM standard |
||||
|

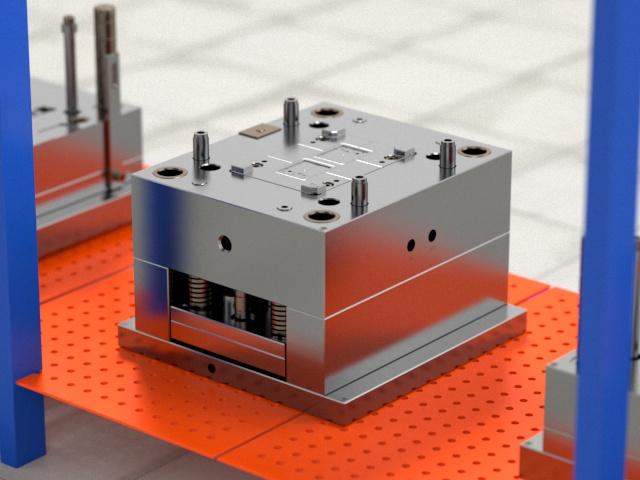

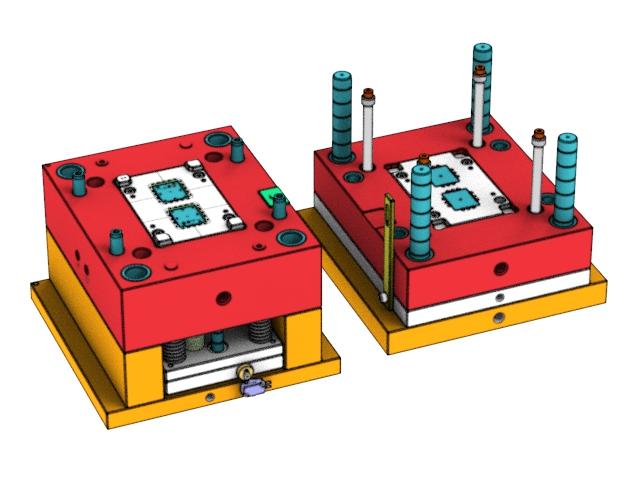

The mold is designed with cold runner, pin point gate, and three-plates structure, and is tailor-made for characteristics of ENH2900 material; short cycle time, better details, mold good fitted, minimizedmaterial loss of runner, more uniform pressure in the cavity. The mold has the tool life of 500k shots and good anti-wearing performance, with stable quality for mass production, w/o leakage and burrs |
||||
|
Surface finish: ① A surface polished to SPI A2 ② Other surfaces EDM with VDI24# Steel of cavity & core: Harden (1*2/S136) Injection/Runner Type: Cold Runner |
||||
|
Mold net weight: 174kg IMM Tonnage: 100T |

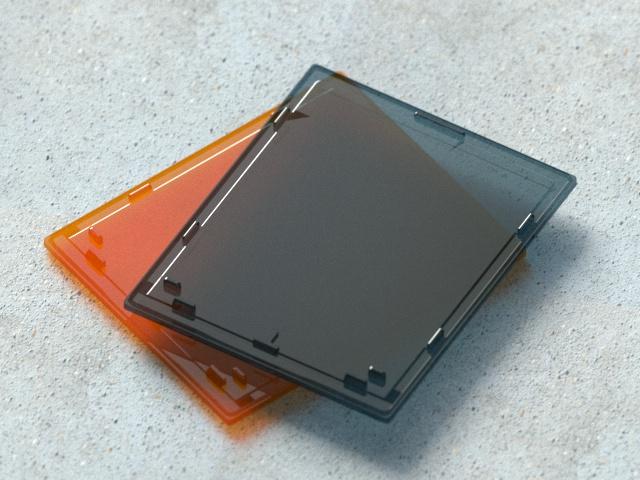

Part material: ENH2900
Part weight: 1.98g
Part size: 42*34.38*2.3mm

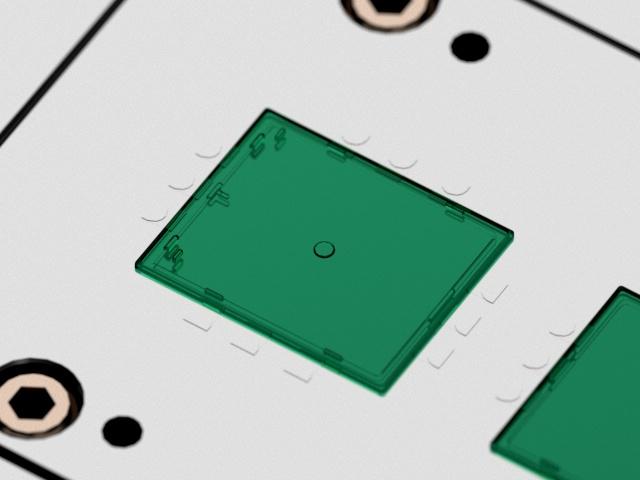

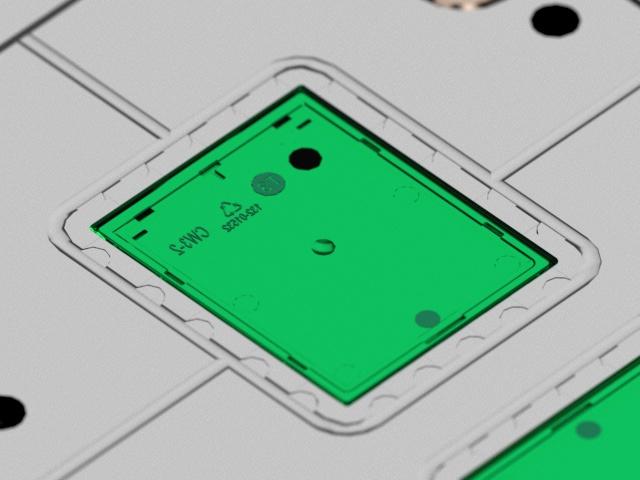

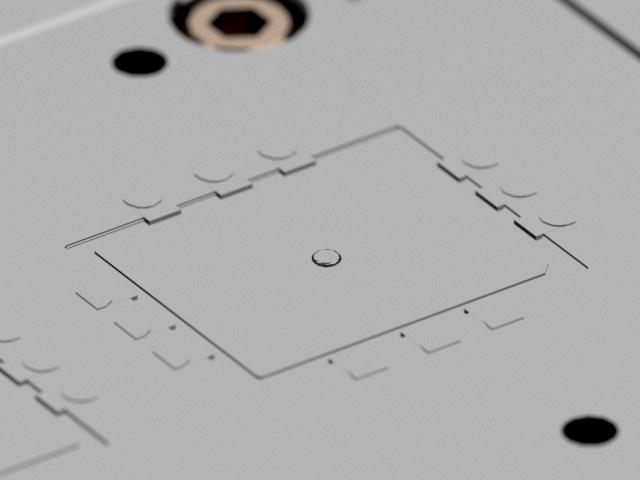

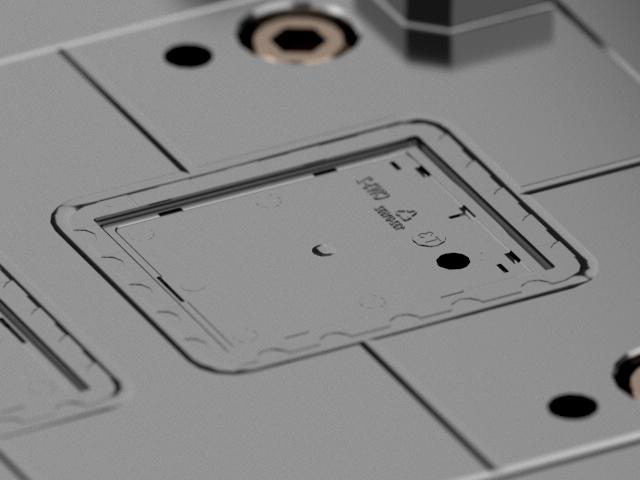

Display diagram
